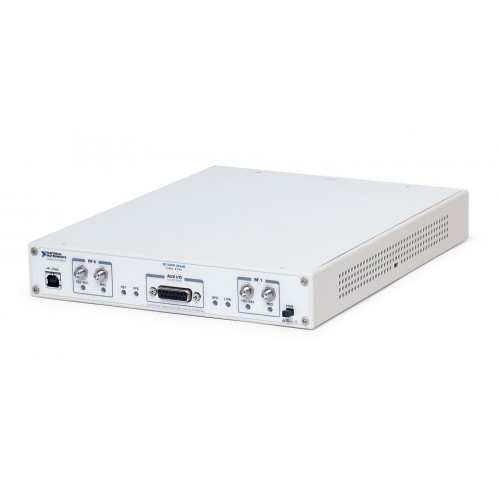

USRP-2944

Name: USRP-2944
Brand: NI (National Instruments)

The NI USRP-2944 is a reconfigurable software-defined radio with a 10 MHz to 6 GHz RF frequency range, 160 MHz instantaneous input bandwidth, and two input and two output channels.

ManufacturerNI (National Instruments)

ModelUSRP-2944

Part Number783149-01

Product Type10 MHz to 6 GHz, Reconfigurable USRP Software Defined Radio Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USRP-2944

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bus ConnectionEthernet, MXI Express

RF Frequency Range10 MHz to 6 GHz

Number of Output Channels2

RF Transceiver Instantaneous Input Bandwidth160 MHz

Number of Input Channels2

GPSDONo

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USRP-2944 combines RF input and output channels with a reconfigurable FPGA for wireless communication system prototyping. Its RF frequency range extends from 10 MHz to 6 GHz, with 160 MHz instantaneous input bandwidth.

The device includes a Kintex-7 410T FPGA, supports peer-to-peer streaming, and lists Ethernet and MXI Express bus connections. The supplied catalog data associates part number 783149-01 with the NI USRP-2944R designation; the catalog model remains USRP-2944.

10 MHz to 6 GHz RF frequency range.
160 MHz RF transceiver instantaneous input bandwidth.
Two input channels and two output channels.
Reconfigurable Kintex-7 410T FPGA.
Ethernet and MXI Express bus connections.
Supports peer-to-peer streaming.

Verified specifications

Technical data

Verified product specifications.

Bus Connection	Ethernet, MXI Express
RF Frequency Range	10 MHz to 6 GHz
GPSDO	No
Number of Output Channels	2
RF Transceiver Instantaneous Input Bandwidth	160 MHz
Number of Input Channels	2
FPGA	Kintex-7 410T
Reconfigurable	Yes
Maximum Output Power	20 dBm
Supports Peer To Peer Streaming	Yes
NI part numbers	783149-01
