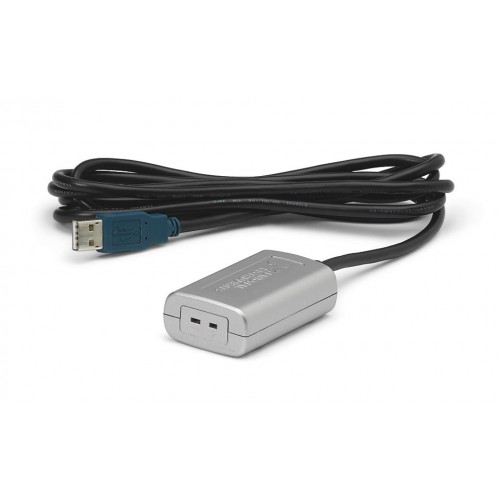

NI USB-TC01 (Device Only) — 1-Channel Temperature Input Device
Short overview (long-tail friendly):
The NI USB-TC01, 781314-01 is a compact single-channel USB thermocouple interface for
J, K, T, E, N, R, S, B types with integrated cold-junction compensation (CJC),
20-bit resolution, and a software-timed sample rate up to 4 S/s. Designed for
slow / low-frequency temperature logging, bench R&D trending, and single-probe monitoring on a PC via USB.
This module is part of the broader family of
Data Acquisition and Control Systems
used in laboratory automation, testing, and industrial monitoring. It also belongs to
Test and Measurement Equipment
commonly applied in temperature calibration, validation, and prototype diagnostics.
Key use cases
- USB K-type/J-type single-probe temperature monitoring
- Slow process warm-up/cool-down trend logging (≤ 1 Hz bandwidth)
- Benchtop fixtures, environmental chambers, calibration rigs
- Ad-hoc measurements in labs and service workflows
Highlights
- Integrated CJC & open-thermocouple detection
- 20-bit ADC resolution for stable low-frequency reads
- USB 2.0 (bus-powered); plug-and-log with NI software
- Supports J, K, T, E, N, R, S, B thermocouples
SEO long-tail examples
usb thermocouple reader single channel • slow temperature logger pc • usb k-type thermometer for lab •
1-channel thermocouple usb device with cjc • low frequency temperature trending 1 hz •
data acquisition and control systems • test and measurement equipment
Technical Specifications
| Manufacturer / Brand | NI (National Instruments) |
|---|---|
| Model | USB-TC01 (Device Only) |
| MPN | 781314-01 |
| Input Channels | 1 thermocouple channel |
| Supported TC Types | J, K, T, E, N, R, S, B |
| Resolution | 20-bit ADC |
| Sample Rate | Up to 4 samples/second (software-timed) |
| Input Range | ±73.125 mV (typical, thermocouple scaled) |
| Input Bandwidth | ~1 Hz (low-frequency measurements) |
| CJC | Integrated cold-junction compensation |
| Open TC Detection | Yes |
| Interface / Power | USB 2.0, bus-powered |
| Software | NI InstantDAQ, NI-DAQmx-based applications |
| Typical Applications | Slow temperature trending, single-probe logging, benchtop R&D |
| Form Factor | Compact USB module with subminiature TC connector |
What’s Included
- NI USB-TC01 module (Device Only)
- Quick start resources (download)
- Thermocouple probe not included
Software & Integration
Works out-of-the-box with NI InstantDAQ for quick logging and with NI-DAQmx for custom measurement applications.
For broader context on data acquisition and instrumentation, see:
Data Acquisition & Control and
Electronic Test & Instrumentation.
Comparison with Similar USB Thermocouple Devices
| Model (MPN) | Ch. | TC Types | Resolution | Max Rate | CJC / Open-TC | Software / Notes | Best For |
|---|---|---|---|---|---|---|---|
| NI USB-TC01 (781314-01) | 1 | J, K, T, E, N, R, S, B | 20-bit | 4 S/s | Yes / Yes | NI InstantDAQ & NI-DAQmx; USB 2.0 | Single-probe USB thermocouple logging within NI stack |
| MCC USB-2001-TC | 1 | J, K, T, E, N, R, S, B | 20-bit | 4 S/s | Yes / Yes | MCC DAQ apps; Win/macOS/Linux options | Cost-effective 1-ch alternative with broad OS support |
| OMEGA OM-EL-USB-TC | 1 | J, K, (kit-dependent S, T) | — | Standalone (interval) | Internal CJC | Standalone USB data logger (internal memory) | Untethered field logging without live PC streaming |
| OMEGA OMB-DAQ-USB-2401 | 4 | J, K, T, E, N, R, S, B + V | — | — | Yes / — | PC-tethered DAQ; isolation; multi-channel | Four-channel thermocouple/voltage acquisition |
| Pico TC-08 | 8 | Multiple TC types (mini-TC) | — | — | Yes / — | PicoLog software | High channel-count USB thermocouple logging |
Why Choose NI USB-TC01?
- Low-frequency stability for slow temperature changes (trend plots, soak tests)
- Simple PC integration with NI’s software ecosystem
- Built-in CJC and open-TC detection for reliable readings
- Compact, bus-powered form factor for quick setups
FAQ
- Does the USB-TC01 support K-type thermocouples?
- Yes. It supports J, K, T, E, N, R, S, and B types.
- Is this the Device Only version?
- Yes. No thermocouple probe is included; use your preferred TC type.
- What sampling rate should I expect?
- Software-timed up to 4 samples per second; suitable for slow/low-frequency logging.
- Do I need external power?
- No. The module is bus-powered over USB 2.0.
