Home / Shop / USB Extension Cable With Retention for CompactRIO and Stand-Alone NI CompactDAQ

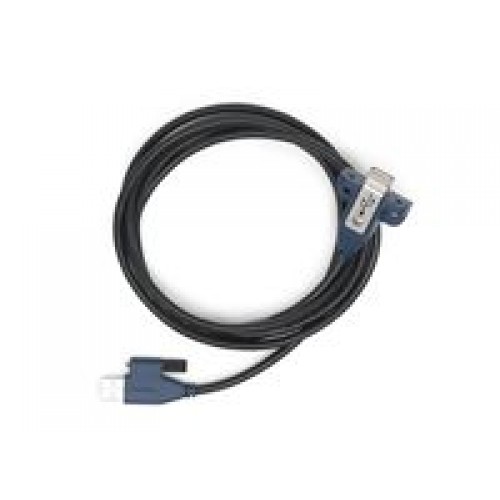

National Instruments USB Extension Cable With Retention for CompactRIO and Stand-Alone NI CompactDAQ USB extension cable with retention
1 image: Click to enlarge
National Instruments · CompactRIO; CompactDAQ

USB Extension Cable With Retention for CompactRIO and Stand-Alone NI CompactDAQ

NI USB Type-A extension cable with mechanical retention for supported CompactRIO and stand-alone CompactDAQ controllers. NI documents 0.5 m and 2 m variants; this catalog record does not identify a specific length or part number.

ManufacturerNational Instruments
ModelUSB Extension Cable With Retention for CompactRIO and Stand-Alone NI CompactDAQ
Product TypeUSB extension cable with retention
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB Extension Cable With Retention for CompactRIO and Stand-Alone NI CompactDAQ

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Connector formatUSB 2.0 Type-A male to Type-A female
RetentionJackscrew male connector; female connector with retention
PlatformsSelected CompactRIO and CompactDAQ controllers
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This accessory extends a USB connection while providing connector retention. NI identifies it in the USB accessory guides for selected CompactRIO and CompactDAQ controllers.

Select by controller model as well as cable length. The CompactDAQ guide distinguishes controller USB Type-A extensions from chassis USB connection cables, so these accessories should not be treated as interchangeable.

  • Four-pin USB 2.0 Type-A male connector with jackscrew.
  • Four-pin USB 2.0 Type-A female connector with retention.
  • Manufacturer compatibility tables identify supported controller models and cable variants.
Verified specifications

Technical data

Verified product specifications.

Male connector4-pin USB 2.0 Type-A with jackscrew
Female connector4-pin USB 2.0 Type-A with retention
Manufacturer length variants0.5 m: 152166-0R5; 2 m: 152166-02. Catalog variant not identified.
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactRIO / CompactDAQ controllers

Supported host platforms, subject to model-specific accessory tables

USB extension cable with retention

Type-A USB connection extension

Compatibility

NI lists both length variants for cDAQ-9132 through cDAQ-9139 controllers.

Confirm the controller model and cable variant against NI's accessory tables. The length and part number of this catalog item remain unspecified.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB Extension CableManufacturer Product Page · ni.com
Open →
CompactRIO USB Cable AccessoriesCompatibility Guide · ni.com
Open →
CompactDAQ USB CableCompatibility Guide · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which CompactDAQ controllers does NI list for these extension cables?

NI lists 152166-0R5 and 152166-02 for cDAQ-9132, cDAQ-9133, cDAQ-9134, cDAQ-9135, cDAQ-9136, cDAQ-9137, cDAQ-9138 and cDAQ-9139 controllers.

Does this cable fit every CompactRIO controller?

No universal compatibility is established. NI lists these Type-A extension variants for selected controllers, including cRIO-9030 and cRIO-9040, but marks the Type-A extension column not applicable for cRIO-9053, cRIO-9054, cRIO-9056 and cRIO-9057.

Which cable length does this catalog record represent?

The supplied record does not identify a length. NI documents 152166-0R5 as 0.5 m and 152166-02 as 2 m; neither has been assigned as the exact identity of this item.
