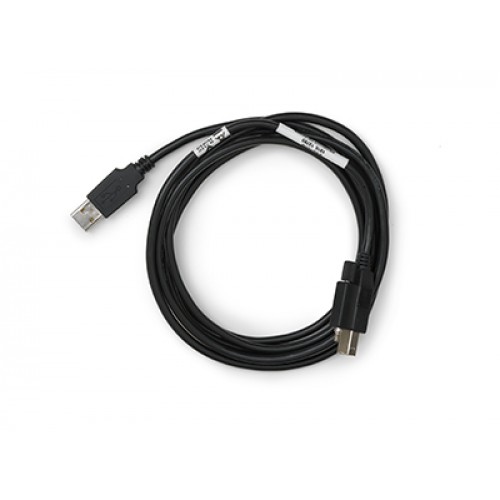

National Instruments USB Cables for CompactDAQ Chassis Locking USB-A to USB-B cable family

1 image: Click to enlarge

National Instruments · CompactDAQ

USB Cables for CompactDAQ Chassis

Name: USB Cables for CompactDAQ Chassis
Brand: National Instruments

NI locking USB-A to USB-B cables connect supported CompactDAQ chassis to a USB host. USB standard, cable length, and chassis suitability depend on the selected cable part number.

ManufacturerNational Instruments

ModelUSB Cables for CompactDAQ Chassis

Product TypeLocking USB-A to USB-B cable family

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB Cables for CompactDAQ Chassis

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformSupported NI CompactDAQ USB chassis

ConnectorsUSB Type-A male to USB Type-B male

RetentionType-B jackscrew on locking variants

Variant selectionUSB 2.0 or USB 3.0; 1 m or 2 m options

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This catalog record describes a cable family rather than an identified individual cable. NI documents locking Type-A to Type-B cables in USB 2.0 and USB 3.0 versions, including 1 m and 2 m options.

Select the cable against the exact chassis model. NI's CompactDAQ guide lists different Type-B cable part numbers for cDAQ-9171/9174/9178 and cDAQ-9179, while its USB Type-C chassis require different cable types.

Type-A to Type-B connectivity for supported CompactDAQ USB chassis.
Jackscrew-equipped Type-B connectors provide mechanical retention on locking variants.
Separate USB 2.0 and USB 3.0 variants accommodate chassis-specific connection requirements.

Verified specifications

Technical data

Verified product specifications.

Connector arrangement	USB Type-A male to USB Type-B male, variant-dependent USB generation
Locking connector	Type-B jackscrew on documented locking variants
Family USB standards	USB 2.0 and USB 3.0; selected by cable part number
Family length options	1 or 2; exact length depends on cable part number m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

CompactDAQ

Supported chassis platform

USB-A to USB-B cable

Host-to-chassis connection accessory

Compatibility

NI lists cable 198506-01, 1 m, for cDAQ-9171, cDAQ-9174, and cDAQ-9178. This is a documented family option, not a confirmed identification of this catalog item.

Confirm the exact cable part number, length, USB generation, and chassis connector before selection; this record does not identify a single variant.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-A to USB-B CableManufacturer Product Family Page · ni.com

Open →

CompactDAQ USB CableManufacturer Accessory Compatibility Guide · ni.com

Open →

NI CompactDAQ USB Cable Selection GuideTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this one cable that supports every CompactDAQ chassis?

No universal compatibility is established. This record describes a cable family, and NI specifies cable part numbers by chassis model. Check the chassis and exact cable variant.

Does the cable use USB 2.0 or USB 3.0?

NI documents both USB 2.0 and USB 3.0 locking Type-A to Type-B variants. The supplied record does not identify which version applies to an individual cable.

Will this Type-B cable connect directly to a USB Type-C CompactDAQ chassis?

NI lists Type-C cable options for cDAQ-9170, cDAQ-9173, and cDAQ-9177, rather than Type-B cables. Select the cable specified for that chassis.
