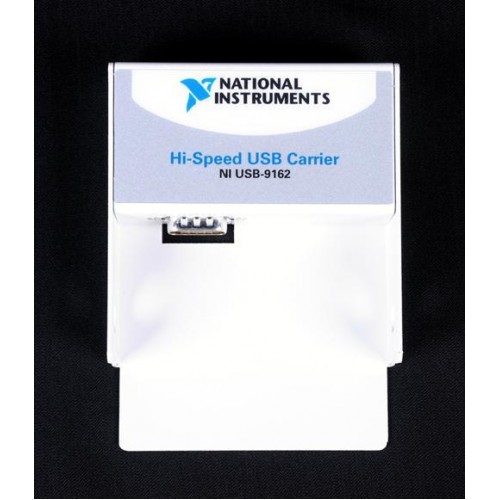

National Instruments USB-9162 Single-module USB carrier for C Series I/O modules

1 image: Click to enlarge

National Instruments · CompactDAQ

USB-9162

The National Instruments USB-9162 is a portable, single-module USB carrier for supported NI C Series I/O modules. It supports standalone applications, larger-system debugging, and sensor-connection prototyping.

ManufacturerNational Instruments

ModelUSB-9162

Part Number779471-01

Product TypeSingle-module USB carrier for C Series I/O modules

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-9162

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Module capacity1 C Series module

Host interfaceUSB 2.0 Hi-Speed

PowerUSB bus-powered

Module supportSelected C Series modules only

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-9162 provides a single-module carrier format for portable C Series applications. NI identifies it as a CompactDAQ chassis, with uses including standalone operation and debugging larger measurement systems.

It can also be used to prototype sensor connections before integrating supported modules into a CompactRIO system. Carrier support is limited to a subset of C Series modules; check the exact module variant against the intended NI-DAQmx release.

Single-slot format for one supported C Series module.
USB bus power for portable use.
Green LED indicates device status.
Threaded inserts permit panel or wall mounting.

Verified specifications

Technical data

Verified product specifications.

Module slots	1
USB interface	USB 2.0 Hi-Speed
Maximum USB current consumption	500 mA
Maximum suspend-mode current	2.5 mA
Dimensions	114.6 × 85.7 × 25.1 mm
Weight	101 g
Operating temperature	0 to 60 °C
Storage temperature	-40 to 85 °C
Operating humidity	10 to 90, noncondensing % RH
Maximum altitude	2000 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

C Series / USB

Module family and host interface

USB-9162

Single-module carrier

Driver compatibility

Consult the specific NI-DAQmx release readme for supported module variants.

C Series membership alone does not establish USB-9162 compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-9162 Official Product PageProduct Page · ni.com

Open →

NI USB-9162 User GuideUser Guide And Specifications · download.ni.com

Open →

C Series Module Not Seen In cDAQ-9172, USB-9162, WLS-9163, or ENET-9163Compatibility Troubleshooting · knowledge.ni.com

Open →

USB-9162 Detection in NI Hardware Configuration UtilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-9162 support every NI C Series module?

No. It supports only a subset. NI recommends consulting the readme for the specific NI-DAQmx driver release, including any restrictions on connector or hardware variants.

Does the USB-9162 require an external power supply?

The carrier is USB bus-powered.

Why does an empty USB-9162 not appear in NI MAX?

NI states that the carrier alone does not appear in MAX or Hardware Configuration Utility. Without a module, Windows Device Manager may identify it as '9162 No Cartridge'; a supported installed module is needed for module detection.
