Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.

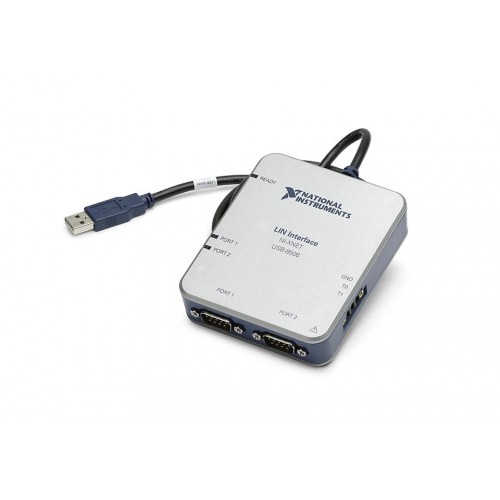

The USB-8506 provides a Local Interconnect Network interface for applications developed with the NI-XNET driver. The interface device is powered over the USB bus and does not require external power for the device itself.
Supported uses include LIN frame and signal logging, bus monitoring, in-vehicle data logging and automation control. Its device-driven DMA engine transfers LIN frames and signals between the interface and the user program without CPU interrupts, reducing message latency and host processor overhead.
Verified product specifications.
| Bus Connector | USB 2.0 |
|---|---|
| Reconfigurable | No |
| Bus Connection | USB 2.0 |
| Operating Temperature Range | 0 °C to 55 °C |
| Maximum Baud Rate | 20 kbits/s |
| Conformal Coated | No |
| Enclosed | Yes |
| NI part numbers | 784664-01, 784663-01 |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Bus Connector
This product
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It is a USB Local Interconnect Network interface for developing LIN applications with the NI-XNET driver.
The USB-8506 model family includes 1- and 2-port configurations. Confirm the part number and port configuration of the specific device before selection.
The interface device is powered over the USB bus and does not require external power for the device itself. Consult the getting-started guide for LIN network wiring and power requirements.
The maximum baud rate is 20 kbits/s.
The operating temperature range is 0 °C to 55 °C.
