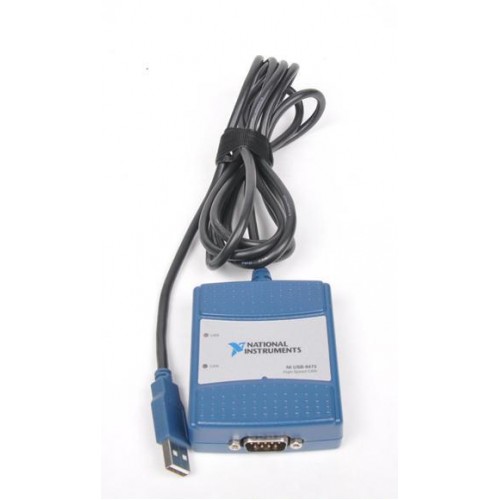

USB-8473, front view
USB-8473, front view additional viewUSB-8473, front view additional viewUSB-8473, front view additional view
4 images: additional views below.Click to enlarge
National Instruments · USB

USB-8473

The National Instruments USB-8473 connects a computer to one high-speed CAN network through USB 2.0. It supports CAN application development using the NI-CAN frame-based API.

ManufacturerNational Instruments
ModelUSB-8473
Part Number779792-01
Product TypeSingle-port high-speed CAN interface device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-8473

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
CAN ports1 high-speed CAN port
Host interfaceUSB 2.0
DriverNI-CAN
Operating temperature0 to 55 °C
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-8473 is a USB-connected CAN interface for developing CAN applications, including work with automotive networks. Its single port uses the high-speed CAN physical layer.

NI-CAN provides the frame-based programming interface. NI documents USB-8473 and USB-8473s separately; the synchronization capabilities of the USB-8473s should not be attributed to the standard USB-8473.

  • Listen-only mode for CAN monitoring.
  • Self-reception (echo) mode.
  • Advanced filtering modes.
  • Hardware timestamping with 1 µs resolution, as documented for NI USB-847x CAN interfaces.
Verified specifications

Technical data

Verified product specifications.

Number of CAN ports1
CAN physical layerHigh-Speed
Host connectionUSB 2.0
Operating temperature range0 to 55 °C
External timing and triggeringNot supported on standard USB-8473
Hardware timestamp resolution1 µs
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB 2.0

Computer interface

USB-8473

Single-port high-speed CAN interface

Software path

NI-CAN frame-based API

Confirm the device label and NI-CAN version requirements before integration; USB-8473 and USB-8473s have different synchronization capabilities.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

USB-8473 Official Product PageProduct Page · ni.com
Open →
NI-CAN 18.0 ReadmeDriver Documentation · download.ni.com
Open →
NI CAN Product Compatibility and Feature TableTechnical Reference · ni.com
Open →
NI CAN Product Compatibility and Feature TableTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the USB-8473 a CAN or LIN interface?

The USB-8473 is a high-speed CAN interface. NI lists the USB-8476 separately as the LIN model.

Which driver supports the USB-8473?

NI-CAN supports the USB-8473. The NI-CAN 18.0 readme explicitly lists this model; check the selected driver's operating-system and development-environment requirements.

Does the standard USB-8473 support external synchronization?

No. NI distinguishes the standard USB-8473 from the USB-8473s model with synchronization.
