National Instruments USB-8451 USB I2C/SPI/SMBus master interface

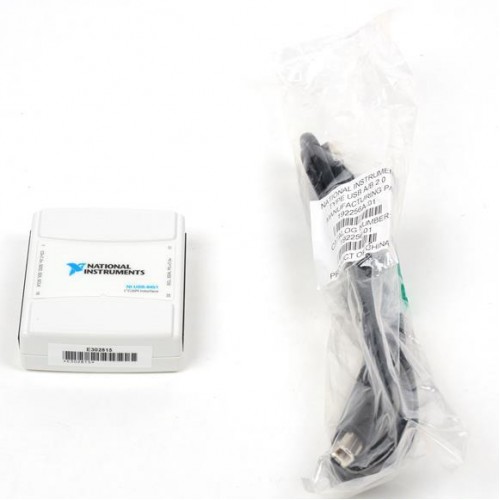

1 image: Click to enlarge
National Instruments · USB

USB-8451

The NI USB-8451 connects a USB host to I2C, SMBus and SPI devices as a master interface. Eight general-purpose digital I/O lines support additional control tasks.

ManufacturerNational Instruments
ModelUSB-8451
Part Number779553-01 · 779553-50
Product TypeUSB I2C/SPI/SMBus master interface
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-8451

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Maximum I2C clock250 kHz
Maximum SPI clock12 MHz
Digital I/O8 software-configurable lines
External circuit power+5 V output, 230 mA maximum
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-8451 provides USB-based communication with serial-bus integrated circuits and consumer electronics. Its portable format allows placement near the target circuit to help shorten I2C wiring.

NI documents LabVIEW communication examples using NI-845x software, including SPI access to an AT25080A EEPROM.

  • Master communication with I2C, SMBus and SPI peripherals.
  • Individually selectable digital input or output direction.
  • Eight SPI chip-select outputs.
  • Provides power and ground connections for suitable external circuits.
Verified specifications

Technical data

Verified product specifications.

Maximum I2C clock rate250 kHz
Maximum SPI clock rate12 MHz
SPI transfer size8 bits
General-purpose digital I/O lines8 lines
USB signalingFull-speed
External power output current230 maximum mA
External power output voltage4.10 minimum to 5.25 maximum V
Operating temperature0 to 45 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB

Host connection

USB-8451

I2C/SPI/SMBus master interface

Software example

NI provides a LabVIEW SPI tutorial using NI-845x software.

Confirm the physical variant and target-device electrical requirements before selecting wiring.
