NI (National Instruments) USB-6281 16 AI (18-Bit, 625 kS/s), 2 AO (2.86 MS/s), 24 DIO USB Multifunction I/O Device

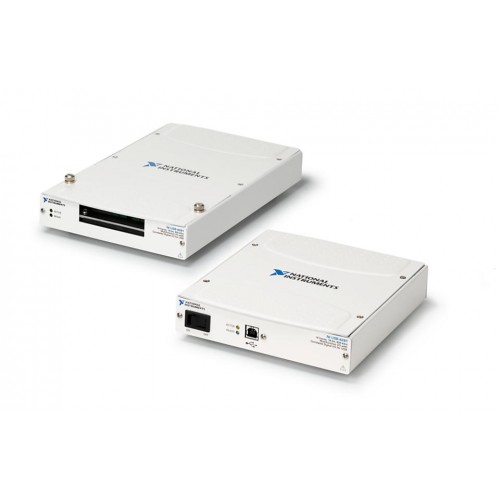

1 image: Click to enlarge

NI (National Instruments) · USB 2.0

USB-6281

Name: USB-6281
Brand: NI (National Instruments)

The NI USB-6281 is a USB multifunction I/O device with up to 16 single-ended or 8 differential analog inputs, 2 analog outputs and 24 bidirectional digital channels. It also includes 2 counters/timers.

ManufacturerNI (National Instruments)

ModelUSB-6281

Part Number780053-02 · 780053-01

Product Type16 AI (18-Bit, 625 kS/s), 2 AO (2.86 MS/s), 24 DIO USB Multifunction I/O Device

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6281

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Bidirectional Digital Channels24

Max Single-Ended Analog Input Channels16

Number of Counters/Timers2

Max Differential Analog Input Channels8

Analog Input Absolute Accuracy980 μV

Analog Input FIFO Buffer Size2047 samples

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The USB-6281 combines analog input, analog output, digital I/O and counter/timer functions in a USB-connected device. Its analog input configuration supports up to 16 single-ended channels or 8 differential channels, with a maximum sample rate of 625 kS/s.

Two analog outputs provide a maximum update rate of 2.86 MS/s, alongside 24 bidirectional digital channels and 2 counters/timers. Analog input sampling is not simultaneous; account for this when planning measurements that require channel-to-channel timing alignment.

Selectable analog input configurations with up to 16 single-ended or 8 differential channels.
Maximum analog input sample rate of 625 kS/s.
Two analog output channels with a maximum update rate of 2.86 MS/s.
24 bidirectional digital channels and 2 counters/timers.
USB 2.0 host connection.

Verified specifications

Technical data

Verified product specifications.

Number of Bidirectional Digital Channels	24
Maximum Number of Single-Ended Analog Input Channels	16
Number of Counters/Timers	2
Maximum Number of Differential Analog Input Channels	8
Analog Input Absolute Accuracy	980 μV
Analog Input FIFO Buffer Size	2047 samples
Maximum Sample Rate	625 kS/s
Simultaneous Sampling	No
Bus Connector	USB 2.0
Number of Analog Output Channels	2
Maximum Analog Update Rate	2.86 MS/s
Bus Connection	USB 2.0
NI part numbers	780053-02, 780053-01, 780053-07, 780053-06, 780053-04, 780053-03, 780054-11
NI part numbers (cont. 2)	780053-11, 780053-12, 780054-12, 780054-04, 780054-06, 780054-07, 780054-02
NI part numbers (cont. 3)	780054-03, 780053-10, 780054-09, 780053-09, 780054-01, 780054-10, 197596-03

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connector

USB-6281

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com

Open →

Letter Of Volatility (NI)Letter Of Volatility · ni.com

Open →

Dimensional Drawings (NI)Dimensional Drawings · ni.com

Open →

Product Page (NI)Product Page · ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog inputs does the USB-6281 provide?

It supports up to 16 single-ended analog inputs or 8 differential analog inputs.

Does the USB-6281 support simultaneous analog input sampling?

No. The USB-6281 does not support simultaneous analog input sampling.

What are the maximum analog input and output rates?

The maximum analog input sample rate is 625 kS/s. The maximum analog output update rate is 2.86 MS/s. Consult the NI specifications for the conditions and configuration limits associated with these rates.

What digital I/O and counter resources are included?

The device includes 24 bidirectional digital channels and 2 counters/timers.

How does the USB-6281 connect to a host computer?

It uses a USB 2.0 host connection.
