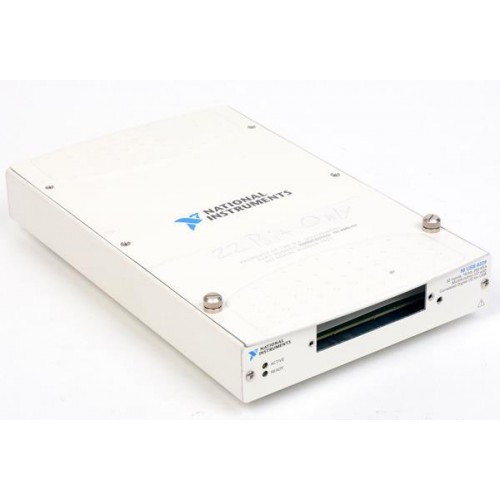

USB-6229

The National Instruments USB-6229 is an M Series multifunction USB DAQ device combining analog input and output, correlated digital I/O, digital triggering and two 32-bit counters/timers.

ManufacturerNational Instruments
ModelUSB-6229
Product TypeMultifunction data acquisition device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6229

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs32 single-ended or 16 differential
Input resolution16-bit
Maximum input sampling250 kS/s aggregate
Analog outputs4 channels
Digital I/OUp to 48 lines; connection variant matters
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6229 places measurement, signal generation and digital timing functions in a USB-connected device for laboratory automation, research, design verification and manufacturing test.

NI lists screw-terminal and BNC configurations under this model. Confirm the unit's part number and terminal arrangement before selecting wiring or accessories.

  • Analog acquisition and generation in one USB device.
  • Correlated digital I/O and digital triggering.
  • Two 32-bit counters/timers.
  • NI-DAQmx-based configuration and measurements.
Verified specifications

Technical data

Verified product specifications.

Analog input channels32 single-ended or 16 differential channels
Analog input resolution16 bits
Maximum analog input sample rate250 single-channel; 250 multichannel aggregate kS/s
Analog input ranges±0.2, ±1, ±5, ±10 V
Analog output channels4 channels
Maximum analog output update rate1 channel: 833; 2 channels: 740/channel; 3 channels: 666/channel; 4 channels: 625/channel kS/s
Digital I/OUp to 48; variant-dependent access lines
Counters/timers2, each 32-bit
Host interfaceUSB 2.0
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

M Series / USB

DAQ family and host interface

USB-6229

Multifunction I/O device

Driver

NI-DAQmx

Confirm the physical connection variant and matching pinout before wiring.
