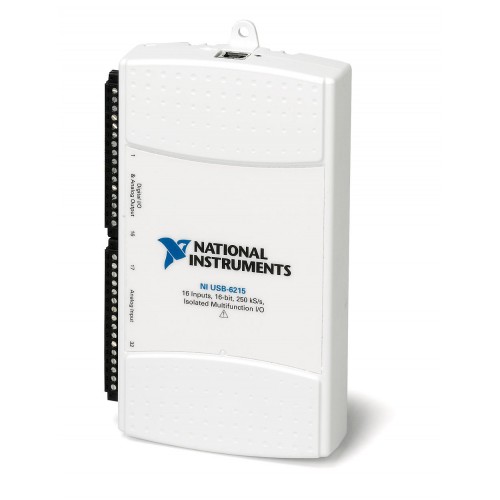

NI (National Instruments) USB-6215 Isolated 16 AI (16-Bit, 250 kS/s), 2 AO (250 kS/s), 4 DI, 4 DO USB Multifunction I/O Device
1 image: Click to enlarge
NI (National Instruments) · USB 2.0

USB-6215

The NI USB-6215 is an isolated, bus-powered USB multifunction DAQ device with 16-bit analog input at up to 250 kS/s. It also provides two analog outputs, four digital inputs, four digital outputs and two counters/timers.

ManufacturerNI (National Instruments)
ModelUSB-6215
Part Number780105-01 · 779677-01
Product TypeIsolated 16 AI (16-Bit, 250 kS/s), 2 AO (250 kS/s), 4 DI, 4 DO USB Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6215

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels16
Number of Counters/Timers2
Max Differential Analog Input Channels8
Analog Input Absolute Accuracy2690 μV
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6215 combines analog acquisition, analog output, digital I/O and counter/timer functions in an enclosed M Series USB device. Its analog inputs support 16 single-ended or 8 differential channels, with 16-bit resolution and a maximum sample rate of 250 kS/s. Simultaneous sampling is not supported.

USB bus power and screw-terminal connections provide a direct connection approach for a host-based measurement setup. The device provides 60 V channel-to-earth-ground isolation; consult the NI specifications for isolation limits and wiring requirements before integration.

  • 16-bit analog input with a maximum sample rate of 250 kS/s and a 4095-sample FIFO buffer.
  • Supports 16 single-ended or 8 differential analog input channels.
  • Selectable analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
  • Two analog output channels with a maximum update rate of 250 kS/s.
  • Four dedicated digital inputs, four dedicated digital outputs and two counters/timers.
  • Enclosed, USB 2.0 bus-powered design with screw-terminal connections and 60 V channel-to-earth-ground isolation.
Verified specifications

Technical data

Verified product specifications.

Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers2
Maximum Number of Differential Analog Input Channels8
Analog Input Absolute Accuracy2690 μV
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
Analog Input Isolation60 V Ch-Earth Ground Isolation
Simultaneous SamplingNo
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorUSB 2.0
Front Connection TypeScrew Terminal
Number of Analog Output Channels2
Maximum Analog Update Rate250 kS/s
Bus ConnectionUSB 2.0
Number of Digital Input Only Channels4
Number of Digital Output Only Channels4
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
NI part numbers780105-01, 779677-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connector

USB-6215

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many analog inputs does the USB-6215 provide?

It supports up to 16 single-ended or 8 differential analog inputs, with 16-bit resolution and a maximum sample rate of 250 kS/s.

Does the USB-6215 support simultaneous sampling?

No. The USB-6215 does not support simultaneous analog input sampling.

How is the USB-6215 connected and powered?

It connects through USB 2.0 and is powered by the USB bus. Signal wiring uses screw-terminal connections.

Are the digital channels bidirectional?

No. The device has four digital input-only channels and four digital output-only channels, with no bidirectional digital channels.

Ask SOHO AssistantProduct & compatibility help
