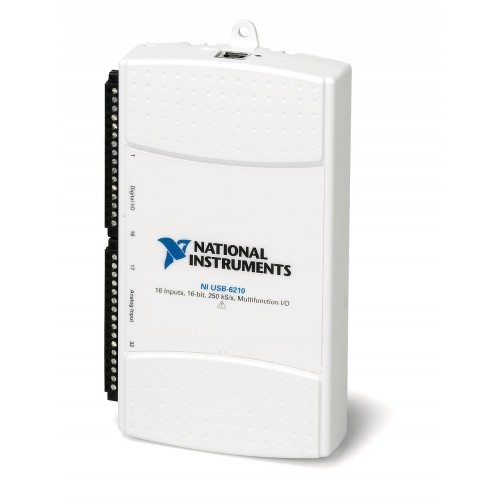

NI (National Instruments) USB-6210 16 AI (16-Bit, 250 kS/s), 4 DI, 4 DO USB Multifunction I/O Device
1 image: Click to enlarge
NI (National Instruments) · USB 2.0

USB-6210

The NI USB-6210 is a bus-powered USB multifunction DAQ device with 16-bit analog input at a maximum sample rate of 250 kS/s. It also provides 4 digital inputs, 4 digital outputs and 2 counters/timers.

ManufacturerNI (National Instruments)
ModelUSB-6210
Part Number779675-01 · 780103-01
Product Type16 AI (16-Bit, 250 kS/s), 4 DI, 4 DO USB Multifunction I/O Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-6210

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Supported Power InputBus Powered
Max Single-Ended Analog Input Channels16
Number of Counters/Timers2
Analog Input Absolute Accuracy2960 μV
Analog Input FIFO Buffer Size4095 samples
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-6210 is an enclosed M Series data acquisition device that connects through USB 2.0. Its analog input section provides up to 16 single-ended channels, 16-bit resolution and a maximum sample rate of 250 kS/s. Sampling is not simultaneous.

Selectable analog input ranges are ±0.2 V, ±1 V, ±5 V and ±10 V. Alongside analog acquisition, the device provides dedicated digital input and output channels and two counters/timers. It has no analog output channels.

  • Up to 16 single-ended analog input channels with 16-bit resolution.
  • Maximum analog input sample rate of 250 kS/s.
  • Analog input ranges of ±0.2 V, ±1 V, ±5 V and ±10 V.
  • 4 dedicated digital inputs and 4 dedicated digital outputs.
  • 2 counters/timers for counter-based measurement tasks.
  • USB 2.0 bus-powered operation with screw-terminal signal connections.
Verified specifications

Technical data

Verified product specifications.

Supported Power InputBus Powered
Maximum Number of Single-Ended Analog Input Channels16
Number of Counters/Timers2
Analog Input Absolute Accuracy2960 μV
Analog Input FIFO Buffer Size4095 samples
Maximum Sample Rate250 kS/s
Simultaneous SamplingNo
EnclosedYes
Analog Input Resolution16 bits
Bus ConnectorUSB 2.0
Front Connection TypeScrew Terminal
Bus ConnectionUSB 2.0
Number of Digital Input Only Channels4
Number of Digital Output Only Channels4
Analog Input Voltage Range-0.2 V to 0.2 V -1 V to 1 V -5 V to 5 V -10 V to 10 V
NI part numbers779675-01, 780103-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connector

USB-6210

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Specifications (NI)Specifications · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Does the USB-6210 sample all analog channels simultaneously?

No. The USB-6210 does not provide simultaneous analog input sampling.

Does the USB-6210 have analog outputs?

No. It has no analog output channels. Its other I/O consists of 4 digital input-only channels, 4 digital output-only channels and 2 counters/timers.

How is the USB-6210 powered and connected?

The USB-6210 is bus powered through its USB 2.0 connection and uses screw terminals for signal connections.
