USB-5681

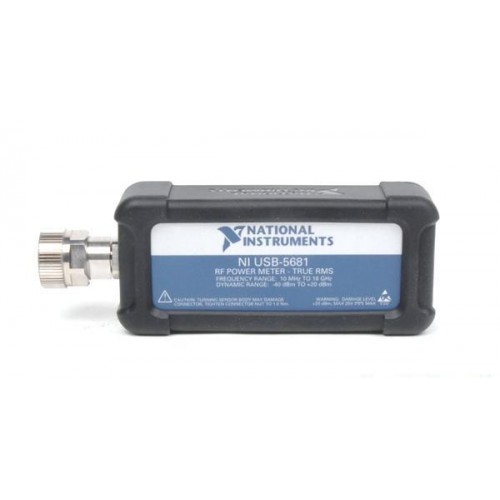

The National Instruments USB-5681 is a USB-connected true-RMS RF power sensor covering 10 MHz to 18 GHz. It measures average RF power over an input range of -40 to +20 dBm.

ManufacturerNational Instruments
ModelUSB-5681
Part Number199764-01
Product TypeTrue-RMS RF power sensor
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-5681

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Frequency coverage10 MHz to 18 GHz
Input range-40 to +20 dBm
DetectionTrue RMS
SoftwareNI-568x driver and Soft Front Panel
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-5681 belongs to NI's RF power sensor device family. NI identifies assembly 199764-01 as the USB-5681 true-RMS RF power sensor.

NI-568x provides an instrument driver for programmed operation and a Soft Front Panel for interactive use. The NI-568x 20.0 readme explicitly lists USB-5681 support.

  • True-RMS RF power sensing.
  • Continuous, scope, and time-slot measurement modes.
  • Immediate, external, internal, and software trigger sources, subject to mode and software restrictions.
  • Interactive operation through the NI-568x Soft Front Panel.
Verified specifications

Technical data

Verified product specifications.

Frequency range10 MHz to 18 GHz
Input range-40 to +20 dBm
MeasurementAverage power
Measurement resolution0.01 dB
Signal-channel bandwidth50 kHz
Typical current from 5 V host USB450 mA
