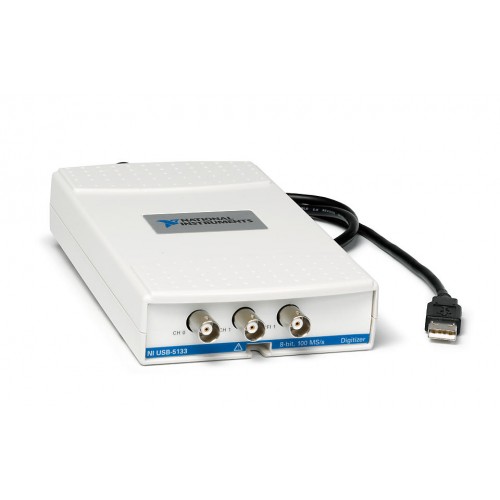

NI (National Instruments) USB-5133 50 MHz Bandwidth, 100 MS/s, 2-Channel, 8-Bit USB Oscilloscope Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

USB-5133

The NI USB-5133 is a computer-based USB oscilloscope with 50 MHz bandwidth, two voltage input channels, 100 MS/s maximum sampling and 8-bit resolution.

ManufacturerNI (National Instruments)
ModelUSB-5133
Part Number780469-02 · 780469-03
Product Type50 MHz Bandwidth, 100 MS/s, 2-Channel, 8-Bit USB Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-5133

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionUSB 2.0
Maximum Sample Rate100 MS/s
Analog Input Voltage Range-20 V to 20 V
Analog Input Resolution8 bits
Voltage Input Channels2
Supported Hardware PlatformComputer-Based Device
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-5133 connects to a computer through USB 2.0, providing two oscilloscope input channels with 50 MHz bandwidth and a maximum sample rate of 100 MS/s. Its 8-bit analog input resolution defines the digitization resolution.

The inputs support AC/DC coupling and have a specified impedance of 1 MΩ. The listed analog input voltage range is -20 V to 20 V; consult the NI specifications for range settings and operating limits before connecting a signal.

  • 50 MHz bandwidth with a maximum sample rate of 100 MS/s.
  • Two voltage input channels with 8-bit analog input resolution.
  • USB 2.0 connection for computer-based measurement systems.
  • AC/DC input coupling and 1 MΩ analog input impedance.
  • Triggering modes and an instrument driver with data streaming and analysis functions.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionUSB 2.0
Maximum Sample Rate100 MS/s
Analog Input Voltage Range-20 V to 20 V
Analog Input Resolution8 bits
Number of Voltage Input Channels2
Supported Hardware PlatformComputer-Based Device
Analog Input CouplingAC/DC
Analog Input Impedance1 MOhm
Onboard Digital DownconverterNo
NI part numbers780469-02, 780469-03, 780469-01, 779970-02, 779970-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

USB-5133

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What are the USB-5133 bandwidth and maximum sample rate?

The USB-5133 has 50 MHz bandwidth and a maximum sample rate of 100 MS/s.

How many input channels does the USB-5133 provide?

It provides two voltage input channels with 8-bit analog input resolution.

What input range, coupling and impedance are specified?

The listed analog input voltage range is -20 V to 20 V, with AC/DC coupling and 1 MΩ input impedance. Refer to NI specifications for detailed range settings and operating limits.

Does the USB-5133 include an onboard digital downconverter?

No. The preserved verified specifications list no onboard digital downconverter.
