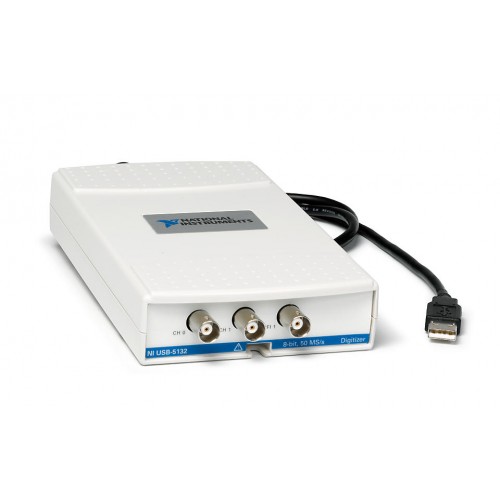

NI (National Instruments) USB-5132 50 MHz Bandwidth, 2-Channel, 8-Bit USB Oscilloscope Device
1 image: Click to enlarge
NI (National Instruments) · Computer-Based Device

USB-5132

The NI USB-5132 is a 50 MHz, 2-channel, 8-bit USB oscilloscope device with a maximum sample rate of 50 MS/s.

ManufacturerNI (National Instruments)
ModelUSB-5132
Part Number780468-02 · 780468-01
Product Type50 MHz Bandwidth, 2-Channel, 8-Bit USB Oscilloscope Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-5132

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Bus ConnectionUSB 2.0
Oscilloscope Maximum Bandwidth50 MHz
Maximum Sample Rate50 MS/s
Analog Input Voltage Range-20 V to 20 V
Analog Input Resolution8 bits
Voltage Input Channels2
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-5132 is part of the NI USB oscilloscope family and connects to a computer through USB 2.0. It provides two voltage input channels with 50 MHz maximum bandwidth and 8-bit resolution.

Its analog inputs support AC/DC coupling and have 1 MΩ input impedance. The specified analog input voltage range is -20 V to 20 V; consult the NI specifications for detailed operating limits before connecting signals.

  • 50 MHz maximum oscilloscope bandwidth.
  • 50 MS/s maximum sample rate.
  • Two voltage input channels with 8-bit analog input resolution.
  • AC/DC input coupling with 1 MΩ analog input impedance.
  • USB 2.0 connection for computer-based measurement.
Verified specifications

Technical data

Verified product specifications.

Bus ConnectionUSB 2.0
Oscilloscope Maximum Bandwidth50 MHz
Maximum Sample Rate50 MS/s
Analog Input Voltage Range-20 V to 20 V
Analog Input Resolution8 bits
Number of Voltage Input Channels2
Supported Hardware PlatformComputer-Based Device
Analog Input CouplingAC/DC
Analog Input Impedance1 MOhm
Onboard Digital DownconverterNo
NI part numbers780468-02, 780468-01, 779969-01, 779969-02
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

Computer-Based Device

Supported Hardware Platform

USB-5132

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Specifications (NI)Specifications · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many input channels does the USB-5132 have?

The USB-5132 has two voltage input channels with 8-bit analog input resolution.

What are the USB-5132 maximum bandwidth and sample rate?

The maximum oscilloscope bandwidth is 50 MHz, and the maximum sample rate is 50 MS/s.

What input range, coupling and impedance are specified?

The specified analog input voltage range is -20 V to 20 V, with AC/DC coupling and 1 MΩ input impedance. Refer to the NI specifications for detailed operating limits.

How does the USB-5132 connect to a computer?

It uses a USB 2.0 connection and is listed as a computer-based device.
