National Instruments USB-5132 OEM OEM USB oscilloscope / digitizer

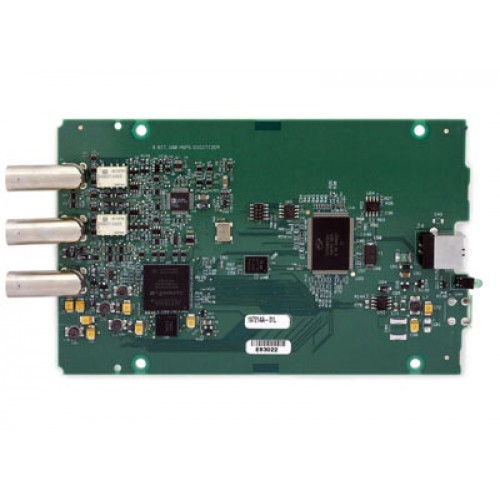

1 image: Click to enlarge
National Instruments · USB

USB-5132 OEM

The NI USB-5132 OEM is an unenclosed, two-channel USB oscilloscope with 8-bit resolution and sampling up to 50 MS/s. Part number 780468-01 provides 4 MB of onboard memory per channel.

ManufacturerNational Instruments
ModelUSB-5132 OEM
Part Number780468-01
Product TypeOEM USB oscilloscope / digitizer
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-5132 OEM

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Analog inputs2 simultaneously sampled channels
Maximum sampling rate50 MS/s
Resolution8 bits
Input impedance1 MΩ
Form factorUnenclosed OEM board
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-5132 OEM brings USB waveform acquisition to customer-integrated equipment. NI provides an OEM-specific guide covering board dimensions, connectors, mounting, and chassis grounding.

Measurement configuration includes selectable coupling, voltage ranges, filtering, and trigger modes. The OEM version must be distinguished from the enclosed USB-5132 when planning mechanical integration.

  • Simultaneous acquisition on two analog channels.
  • AC, DC, and ground input coupling.
  • Selectable 20 MHz bandwidth-limit filter.
  • PFI 1 supports digital triggering, external sample clock input, or acquisition-event output.
Verified specifications

Technical data

Verified product specifications.

Analog input channels2, simultaneously sampled
Maximum real-time sampling rate50 MS/s
Analog input resolution8 bits
Analog bandwidth50; 35 on the 0.04 V peak-to-peak range, filter off MHz
Input impedance1 MΩ ±1%, in parallel with 19 pF nominal
Onboard memory per channel4 for part number 780468-01 MB
Host interfaceUSB 2.0
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

USB 2.0

Computer interface

USB-5132 OEM

OEM digitizer board

Mechanical integration

Use the OEM guide for mounting-hole selection and chassis grounding.

Check OEM-specific mounting and cooling requirements before enclosure integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI USB-5132/5133 OEM User GuideOEM Integration Guide · download.ni.com
Open →
USB-5132 SpecificationsModel Specifications · download.ni.com
Open →
NI USB-5132 Product and Variant DetailsManufacturer Product Page · ni.com
Open →
Continuous Acquisition With NI USB-5132/5133Technical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the USB-5132 OEM supplied in an instrument enclosure?

No. NI identifies the OEM variant as unenclosed; use the OEM guide for mechanical integration.

Can it continuously stream at its maximum sampling rate?

NI states that USB bus limitations prevent continuous acquisition at the full device rate. Sustained throughput depends on the host system and memory configuration.

Can PFI 1 accept an external clock and a digital trigger together?

No. An external sample clock cannot be used when a digital trigger is supplied through PFI 1.

Ask SOHO AssistantProduct & compatibility help
