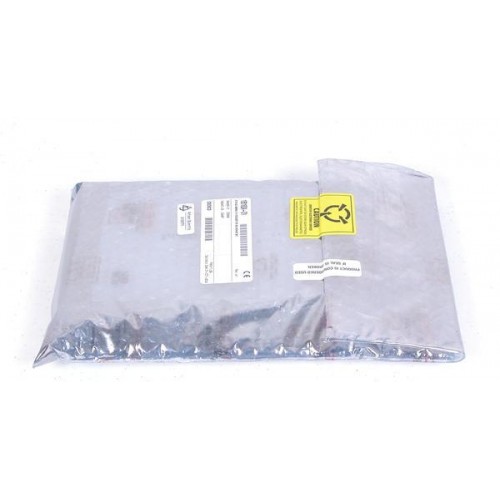

The NI USB-5102 is a dual-channel, 8-bit USB digitizer offering 20 MS/s real-time sampling per channel and 15 MHz typical small-signal bandwidth.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
This is the USB-interface member of the NI 5102 digitizer family, not a PXI module.
Verified product specifications.
| Real-time sampling | 20 maximum per channel MS/s |
|---|---|
| Small-signal bandwidth | 15 typical, −3 dB MHz |
| Input ranges without probe attenuation | ±50 mV, ±0.25 V, ±1 V, ±5 V |
| Maximum waveform buffer | 663,000 per channel samples |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Host interface
NI 5102 family digitizer
NI-SCOPE 18.7 lists USB-5102 as unsupported on its listed Windows 7, Windows 8.1 and Windows 10 configurations, both 32-bit and 64-bit.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. Its maximum waveform buffer is 663,000 samples per channel; the larger buffer specification applies to PCI/PXI versions.
No. The NI-SCOPE 18.7 readme marks PCMCIA/USB/AT-5102 unsupported for the listed 32-bit and 64-bit Windows configurations and identifies these devices as legacy products. Confirm an appropriate historical software environment separately.
