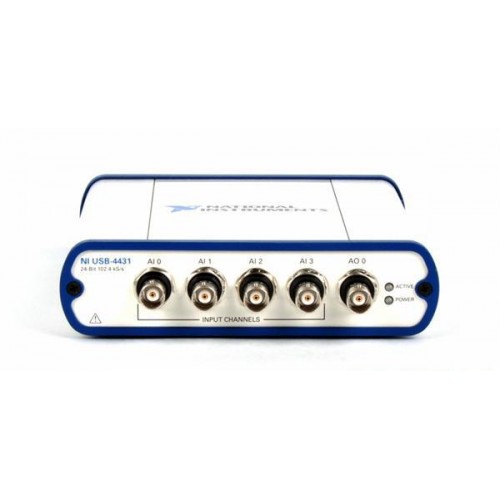

NI (National Instruments) USB-4431 102.4 kS/s, 100 dB, 0.8 Hz AC/DC Coupled, 4-Input/1-Output Sound and Vibration Device
1 image: Click to enlarge
NI (National Instruments) · USB 2.0

USB-4431

The NI USB-4431 is a USB 2.0 sound and vibration device with four simultaneous differential analog inputs, one analog output, and a maximum sample rate of 102.4 kS/s. Integrated IEPE signal conditioning supports measurements with accelerometers and microphones.

ManufacturerNI (National Instruments)
ModelUSB-4431
Part Number780164-01
Product Type102.4 kS/s, 100 dB, 0.8 Hz AC/DC Coupled, 4-Input/1-Output Sound and Vibration Device
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: USB-4431

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Max Differential Analog Input Channels4
Analog Output Channels1
Bus ConnectionUSB 2.0
Analog Input CouplingAC/DC
Maximum Sample Rate102.4 kS/s
Highpass Filter Cut-Off Frequency0.8 Hz
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The USB-4431 is designed for sound and vibration measurements. Its four input channels digitize signals simultaneously and incorporate integrated electronic piezoelectric (IEPE) signal conditioning for accelerometers and microphones.

A single analog output can be synchronized with the analog inputs for stimulus-response tests. The device combines USB 2.0 connectivity with BNC signal connections and AC/DC input coupling; the specified highpass filter cut-off frequency is 0.8 Hz.

  • Four differential analog input channels with simultaneous signal digitization.
  • One analog output channel that can be synchronized with the inputs for stimulus-response testing.
  • 24-bit resolution and a maximum sample rate of 102.4 kS/s.
  • Integrated IEPE signal conditioning for accelerometers and microphones.
  • AC/DC input coupling with a specified 0.8 Hz highpass filter cut-off frequency.
  • USB 2.0 host connection and BNC signal connections.
Verified specifications

Technical data

Verified product specifications.

Maximum Number of Differential Analog Input Channels4
Number of Analog Output Channels1
Bus ConnectionUSB 2.0
Analog Input CouplingAC/DC
Maximum Sample Rate102.4 kS/s
Highpass Filter Cut-Off Frequency0.8 Hz
Front Connection TypeBNC
NI part numbers780164-01
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

NI

Manufacturer

USB 2.0

Bus Connection

USB-4431

This product

Platform shown as listed by NI. Confirm controller, chassis and software fit for your system with NI before integration.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Getting Started (NI)Getting Started · ni.com
Open →
Letter Of Volatility (NI)Letter Of Volatility · ni.com
Open →
Dimensional Drawings (NI)Dimensional Drawings · ni.com
Open →
Product Page (NI)Product Page · ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What measurements is the USB-4431 designed for?

The USB-4431 is designed for sound and vibration measurements, with integrated IEPE signal conditioning for accelerometers and microphones.

How many input and output channels does it provide?

It provides four differential analog inputs that digitize simultaneously and one analog output. The output can be synchronized with the inputs for stimulus-response testing.

What is the maximum sample rate?

The specified maximum sample rate is 102.4 kS/s.

What input coupling and signal connectors does it use?

The USB-4431 provides AC/DC analog input coupling and BNC signal connections. Its specified highpass filter cut-off frequency is 0.8 Hz.
