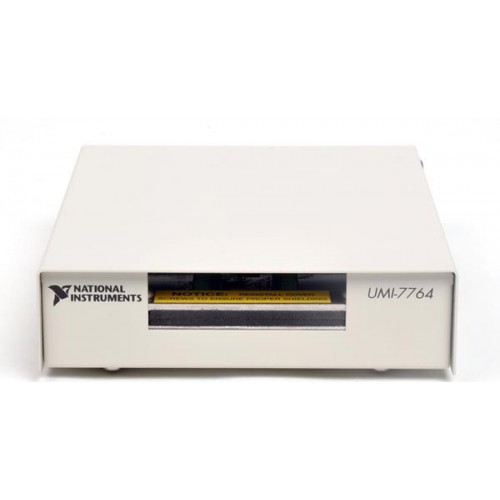

National Instruments UMI-7764 Universal Motion Interface

1 image: Click to enlarge

National Instruments · NI motion control

UMI-7764

Name: UMI-7764
Brand: National Instruments

The UMI-7764 connects NI motion controllers to third-party drives and feedback devices.

ManufacturerNational Instruments

ModelUMI-7764

Product TypeUniversal Motion Interface

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: UMI-7764

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

AxesUp to four

Controller seriesNI 7330, 7340, 7350

Required cableSH68-C68-S

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

Per-axis terminals organize drive, encoder, limit and home connections.

Single-ended TTL and differential encoder inputs.
Host-bus power interlock.
Configurable inhibit polarity.

Verified specifications

Technical data

Verified product specifications.

Maximum quadrature frequency	20 MHz
Encoder voltage range	0–5 VDC
Encoder filter RC time constant	100 ns
Supply	5 VDC
Supply current	0.2 plus encoder and limit power A

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI motion control

Platform

UMI-7764

Connectivity accessory

Compatibility

Stepper: step/direction or CW/CCW. Servo: ±10 V command interface; controller capabilities apply.

Pass-through signal limits depend on the controller; consult its specifications.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

UMI-7764 User GuideUser Guide And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is this a motor drive?

No. It connects a controller to external drives.

Does it require external power?

Yes, a +5 V supply.
