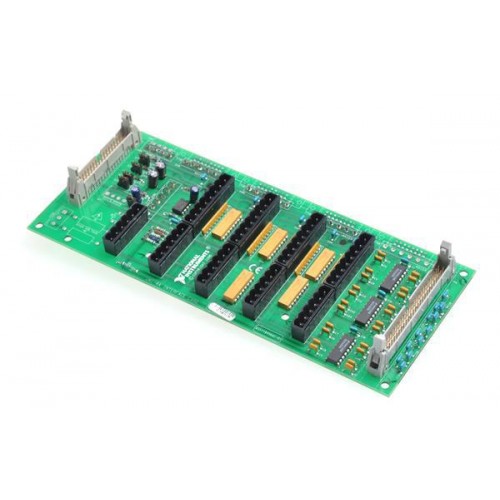

National Instruments UMI-4A Universal Motion Interface accessory
1 image: Click to enlarge
National Instruments · ValueMotion

UMI-4A

The UMI-4A provides four-axis field wiring for NI ValueMotion controllers.

ManufacturerNational Instruments
ModelUMI-4A
Product TypeUniversal Motion Interface accessory
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: UMI-4A

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Axes4
MountingIntegrated DIN-rail base
PowerExternal +5 VDC required
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Removable terminal blocks separate encoder, limit-switch and amplifier/driver wiring by axis.

  • Jumper-selectable servo or stepper configuration.
  • Supports active and passive limit switches.
  • Host-bus monitor interlock disables amplifiers following host shutdown or cable disconnection.
Verified specifications

Technical data

Verified product specifications.

Encoder inputQuadrature with index; differential or single-ended
Encoder voltage0–5 VDC
Limit/home input voltage0–15 VDC
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

ValueMotion

Controller platform

UMI-4A

Wiring accessory

Compatibility

Non-PXI ValueMotion: NB1 or SH50-50 cable.

Check controller-specific cabling and jumper settings before wiring.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

Universal Motion Interface (UMI) Accessory User GuideUser Guide · download.ni.com
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is UMI-Flex4 interchangeable?

Not directly: UMI-Flex4 uses a 100-pin FlexMotion interface, unlike the UMI-4A's 50-pin ValueMotion interface.
