National Instruments · Windows Embedded Standard 7

TPC-2230

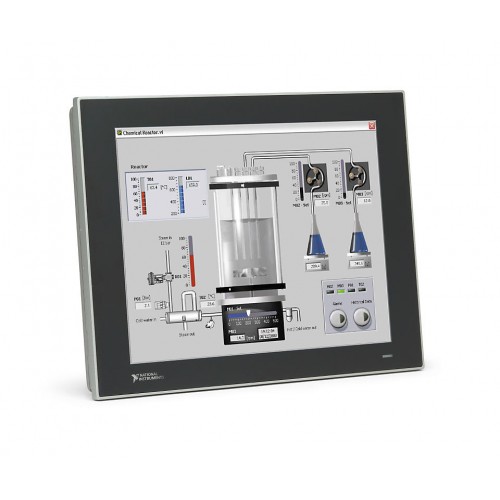

The National Instruments TPC-2230 is a panel-mount touch panel computer for human-machine interface applications. NI documents Windows Embedded Standard 7 as the supported operating system.

ManufacturerNational Instruments

ModelTPC-2230

Part Number784250-01

Product TypeTouch Panel Computer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TPC-2230

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product typeTouch panel computer / HMI

Operating systemWindows Embedded Standard 7

Power input24 VDC ±20%

Operating temperature-20 to 60 °C

Front bezelIP66 compliant

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The TPC-2230 combines a touchscreen interface and computer in a panel-mount HMI. NI's documentation covers 6.5-inch, 12.1-inch and 15-inch versions; the supplied catalog record identifies part number 784250-01, which NI associates with its 6-inch dimensional drawing.

NI provides a LabVIEW executable and installer deployment workflow over Ethernet. Software planning should account for the supported WES 7 operating system rather than assume compatibility with a newer Windows release or Linux.

Panel-mount touchscreen HMI configuration.
24 VDC input with ±20% tolerance.
Front bezel compliant with IP66.
COM2 supports RS-232 and RS-422/485 modes configured through SW2 jumpers.

Verified specifications

Technical data

Verified product specifications.

Supported operating system	Windows Embedded Standard 7
Input voltage	24 ±20% VDC
Operating temperature	-20 to 60 °C
Maximum operating altitude	2000 m
Front bezel protection	IP66
Mounting panel thickness	Less than 6 mm
Use environment	Indoor use only; Pollution Degree 2
