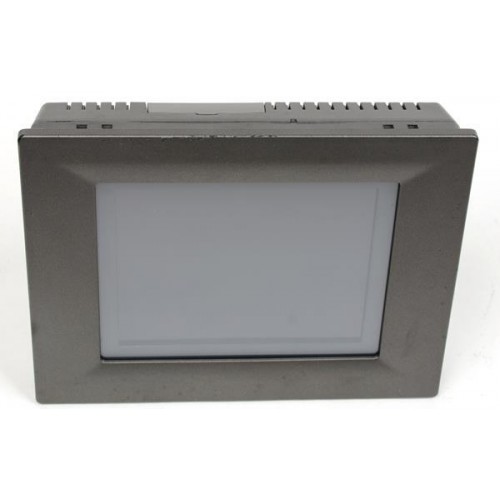

National Instruments TPC-2006 Touch panel computer

1 image: Click to enlarge

National Instruments · Windows CE

TPC-2006

Name: TPC-2006
Brand: National Instruments

The National Instruments TPC-2006 is a Windows CE touch panel computer for industrial human-machine interface applications. NI documents LabVIEW-based application development and Ethernet communication with programmable controllers.

ManufacturerNational Instruments

ModelTPC-2006

Product TypeTouch panel computer

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TPC-2006

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Product typeTouch panel computer

LabVIEW targetTouch Panel Windows CE 4.2 Device

Network communicationEthernet with application-level TCP/IP communication

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The TPC-2006 serves as an operator-interface computer in distributed industrial systems. NI's development guide describes creating a touch panel target in a LabVIEW project, building an application, and deploying it to the device.

Software selection requires attention to the Windows CE target. NI's guide distinguishes the earlier Touch Panel Module workflow from LabVIEW 2014 support, which is limited to TPC-22xx systems running Windows Embedded Standard 7.

Touch panel application development through the documented LabVIEW Touch Panel Module workflow.
Project-based application build specifications and deployment to a Windows CE target.
Ethernet communication for exchanging application data with a programmable controller.

Verified specifications

Technical data

Verified product specifications.

Device type	Touch panel computer
LabVIEW development target	Touch Panel Windows CE 4.2 Device
Network interface	Ethernet

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Product brand

Windows CE touch panel target

Application execution platform

TPC-2006

Operator-interface computer

Development environment

NI documents a LabVIEW Touch Panel Module workflow for this target.

Confirm the LabVIEW version and Windows CE target support before planning application deployment.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

LabVIEW Touch Panel Module Getting Started Guide for LabVIEW Base Development SystemNI Development Guide · knowledge.ni.com

Open →

LabVIEW 8.0.1 PDA Module ReadmeSoftware Readme · download.ni.com

Open →

TPC-2006 FieldPoint communication guidance — NI application-engineering responseTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which LabVIEW target is used for the TPC-2006?

NI's getting-started guide uses the Touch Panel Windows CE 4.2 Device target. Confirm that the development installation supports that target before building an application.

Can the TPC-2006 run the standard FieldPoint drivers?

NI application-engineering guidance states that the FieldPoint drivers cannot be installed on the TPC-2006's Windows CE operating system. Communication with a programmable FieldPoint controller instead requires an appropriate TCP/IP application.

Does the LabVIEW 2014 touch panel workflow support this model?

NI states that LabVIEW 2014 development systems support only TPC-22xx touch panel computers running Windows Embedded Standard 7 in that workflow. This should not be treated as support for the TPC-2006.
