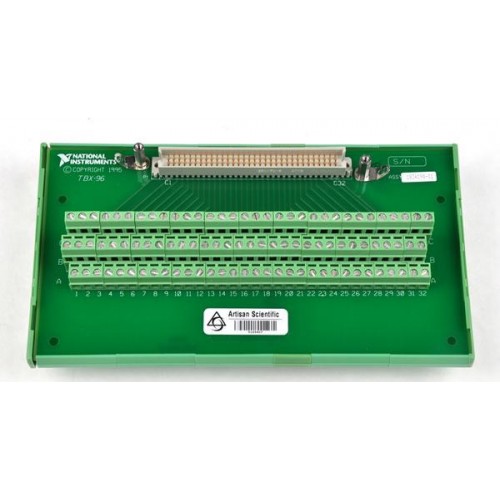

The NI TBX-96 is a shielded terminal block for supported SCXI modules.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The TBX-96 provides field-wiring access to SCXI module front connectors through a cable and TBX adapter.
Verified product specifications.
| Maximum working voltage | 30 Vrms, 42.4 Vpeak, or 60 VDC |
|---|---|
| Dimensions | 19.76 × 12.55 × 6.27 cm |
| Weight | 315 g |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Relative humidity | 10 to 90, noncondensing % |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
Field-wiring terminal block
Documented modules: SCXI-1100, SCXI-1102B/C, SCXI-1104/C, and SCXI-1581.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists SH96-96 shielded and R96-96 ribbon cable assemblies with a TBX cable adapter.
Consult the connected SCXI module's manual for field-signal wiring.
