National Instruments · NI 435x

TBX-68T

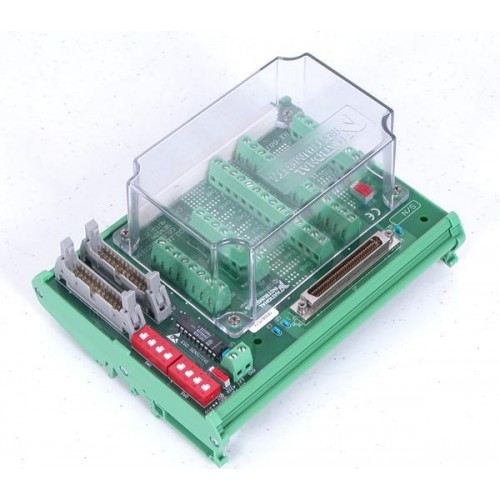

The NI TBX-68T is a DIN-rail isothermal screw-terminal block for NI 435x systems, with a thermistor cold-junction sensor.

ManufacturerNational Instruments

ModelTBX-68T

Product TypeIsothermal terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TBX-68T

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

MountingDIN rail

Connection68-pin

Auto ZeroDedicated CH1

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The TBX-68T provides field-wiring connections for NI 435x measurements. Supported signals include thermocouples, RTDs, thermistors and DC voltage.

Isothermal construction minimizes terminal temperature gradients.
Screw terminals provide signal-wiring access.
Dedicated Auto Zero channel supports offset correction.

Verified specifications

Technical data

Verified product specifications.

I/O connector	68-pin
Compatible DIN rails	DIN EN 50 022; DIN EN 50 035
Cold-junction sensor channel	CH0
Auto Zero channel	CH1; CH1+ connected to CH1−

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI 435x

Measurement system

TBX-68T

Isothermal wiring accessory

Compatibility

NI USB-4350, PXI-4351 and PCI-4351.

Keep the terminal block away from extreme temperature differentials.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

CB-27T, TBX-68T, and CB-68T Isothermal Terminal Blocks Installation GuideInstallation Guide · download.ni.com

Open →

NI 435x User ManualUser Manual · docs-be.ni.com

Open →

NI 435x signal connections and measurement configurationTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Data Acquisition and Control Systems

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which measurement devices support the TBX-68T?

NI lists the NI USB-4350, PXI-4351 and PCI-4351.

Which cable connects the TBX-68T?

NI recommends SH6868 shielded cabling; R6868 ribbon cabling is also listed.

Is the TBX-68T identical to the TBX-68?

No. The TBX-68 extends the device connector pinout; the TBX-68T includes a dedicated Auto Zero channel.
