TBX-68
TBX-68 additional viewTBX-68 additional viewTBX-68 additional viewTBX-68 additional viewTBX-68 additional view
9 images: additional views below.Click to enlarge
National Instruments · NI Data Acquisition

TBX-68

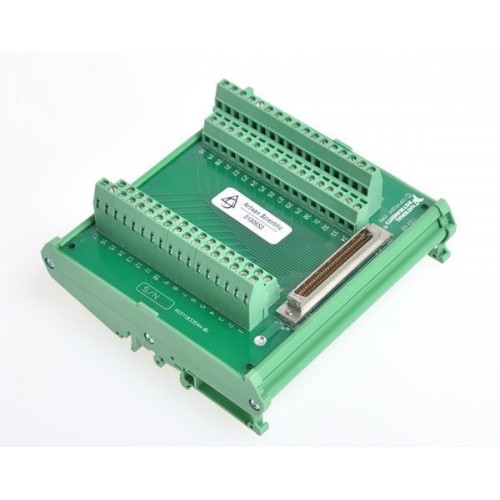

The National Instruments TBX-68 is an unshielded terminal block for connecting field I/O to compatible 68-pin NI DAQ devices. It provides 68 screw terminals, a male SCSI connector, and DIN-rail mounting.

ManufacturerNational Instruments
ModelTBX-68
Part Number777141-01
Product TypeUnshielded screw-terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TBX-68

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Field connections68 screw terminals
Cable interfaceOne 68-pin male SCSI connector
MountingStandard DIN rail
Signal mappingDirect mapping to DAQ connector pins
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The TBX-68 provides a screw-terminal interface between field wiring and a compatible NI DAQ device. Its protective plastic base supports installation on a standard DIN rail.

Terminal numbers map directly to the DAQ connector pins. Use the connected device's pinout to identify each terminal's signal function rather than assuming a universal analog or digital channel assignment.

  • Screw-terminal access to 68 field I/O connections.
  • Male 68-pin SCSI interface for cable connection.
  • Protective plastic base with DIN-rail mounting hardware.
  • Direct pin mapping simplifies reference to the connected DAQ device's wiring documentation.
Verified specifications

Technical data

Verified product specifications.

Screw terminals68
I/O connectorOne 68-pin male SCSI
ShieldingUnshielded
DIN-rail width35 mm
Dimensions12.8 × 12.5 × 6.0 cm
Weight251 g
Wire gauge12–30 AWG
Terminal tightening torque0.8 N·m
Operating temperature0 to 70 °C
Storage temperature−20 to 70 °C
Operating and storage humidity5–90, noncondensing % RH
Maximum altitude2000 m
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

68-pin NI DAQ

Host device interface

TBX-68

DIN-rail field-wiring terminal block

Pin assignments

Determine signal functions from the connected DAQ device's pinout.

Use the device-specific cable. Do not exceed 30 Vrms/42 Vpk/60 VDC; do not use for Measurement Categories II, III, or IV.
