National Instruments TB-2725 Screw-terminal block

1 image: Click to enlarge

National Instruments · PXI

TB-2725

Name: TB-2725
Brand: National Instruments

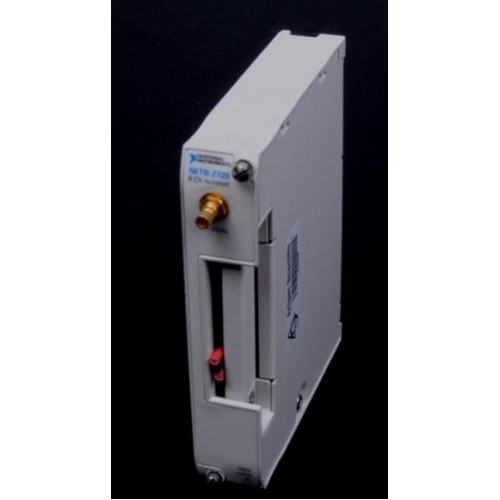

The NI TB-2725 connects up to eight input-signal pairs to PXI-4224 modules.

ManufacturerNational Instruments

ModelTB-2725

Product TypeScrew-terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TB-2725

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Signal connections16 screw terminals

External triggeringOne SMB connector

Wire size16–26 AWG

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The enclosure provides cable strain relief and an earth-ground lug for shield termination.

Screw-terminal signal wiring.
SMB external-trigger connection.
Strain relief at the cable entrance.

Verified specifications

Technical data

Verified product specifications.

Screw terminals	16
Terminal-wire size	16–26 AWG
Dimensions	10.4 × 8.9 × 1.8 cm
Weight	285 g
Maximum working voltage, channel-to-earth and channel-to-channel	42.4 Vpeak or 60 VDC; Measurement Category I
Operating temperature	0–50 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI-4224

Host module

TB-2725

Signal termination

Compatibility

For NI PXI-4224 modules.

Do not use for Measurement Categories II, III, or IV.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.
