TB-2708

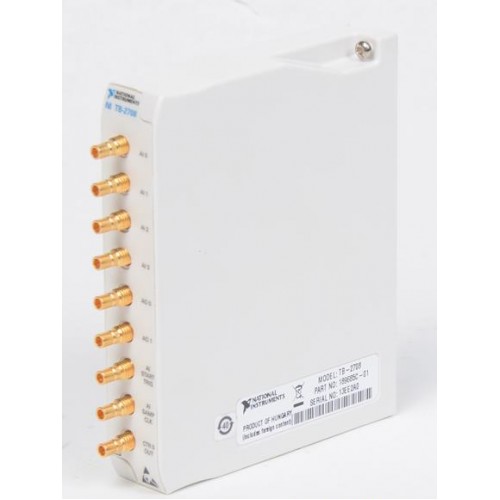

National Instruments TB-2708 PXI Terminal Block for S Series Devices
Features

• Direct SMB Connectivity to the PXI-6115 and PXI-6120
• Access to 4 Simultaneous-Sampling Analog Inputs and 2 Analog Outputs
• Analog or Digital Trigging and On-Board Signal Routing

The National Instruments TB-2708 PXI Terminal Block for S Series Devices provides direct SMB connectivity to the PXI-6115 and PXI-6120 simultaneous-sampling DAQ modules. The SMB connectors provide direct access to four analog inputs, two analog outputs, analog or digital trigger lines, on-board counters, or programmable synchronization lines. Each analog input goes to a dedicated analog-to-digital converter to preserve the phase relationship between different channels and increase overall data throughput.
