National Instruments TB-2705 Front-mount screw terminal block
1 image: Click to enlarge
National Instruments · PXI

TB-2705

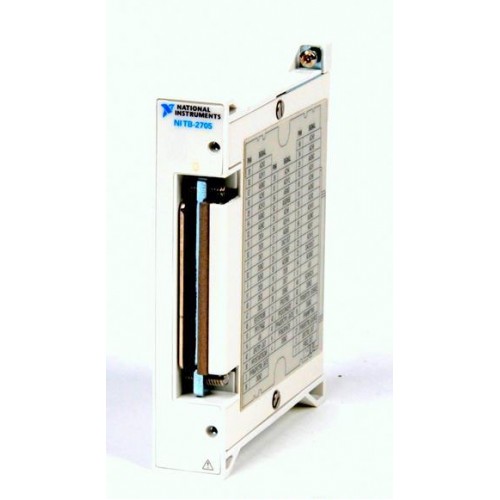

The National Instruments TB-2705 is a front-mount terminal block with 62 screw terminals for supported legacy PXI E Series and S Series DAQ modules. It connects directly to the module and includes an enclosure with strain relief.

ManufacturerNational Instruments
ModelTB-2705
Part Number778241-01
Product TypeFront-mount screw terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TB-2705

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Terminal count62 screw terminals
MountingDirectly on the PXI DAQ module front connector
Module familiesSupported PXI E Series and S Series DAQ modules
Part number778241-01
Termination62 screw terminals
Module connectionOne 68-position female connector
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The TB-2705 provides screw-terminal wiring at the front of a supported PXI multifunction I/O module. Its construction includes a printed circuit board, 62 screw terminals, and an enclosure with strain relief.

NI identifies the TB-2705 as a PXI-mounted accessory that attaches directly to the module front connector without an intervening cable. Select it using the accessory compatibility information for the exact DAQ module rather than assuming compatibility across all PXI devices.

The TB-2705 provides screw-terminal wiring access at the front of a supported PXI DAQ module. NI identifies it as a front-mount accessory for legacy multifunction I/O hardware, including E Series and S Series devices.

Compatibility is module-specific. NI's accessory tables distinguish supported PXI modules from PCI and PXI Express devices; a matching family name alone is not sufficient to select this terminal block.

  • 62 screw terminals for field wiring.
  • Front-mount design for supported legacy PXI multifunction I/O modules.
  • Direct module attachment without a separate connection cable.
  • Enclosure incorporates strain relief for connected wiring.
  • Direct module mounting eliminates an external connection cable.
  • Plastic enclosure houses the terminal-board assembly.
  • Shielded strain relief secures wiring and provides a chassis-ground connection.
Verified specifications

Technical data

Verified product specifications.

Screw terminals62 terminals
Mounting methodPXI module front mount
Module connection cableNot required; attaches directly to supported PXI module front connector
Strain reliefIntegrated into enclosure
Screw terminal count62 terminals
I/O connectorOne 68-position female connector
Operating temperature0 to 50 °C
Storage temperature-20 to 70 °C
Relative humidity10 to 90, noncondensing %
Maximum use altitude2000 m
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI E Series / S Series DAQ

Supported host module families; exact model compatibility must be checked

TB-2705

Front-mounted screw-terminal wiring accessory

Connection arrangement

Module-mounted terminal block with no intervening DAQ cable

Check the exact PXI module in NI's accessory compatibility guide before selecting this terminal block.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

TB-2705 Official Product PageProduct Page · ni.com
Open →
TB-2705 Dimensional DrawingsDimensional Drawings And CAD Models · ni.com
Open →
TB-2705 Product CertificationsCertification Resources · ni.com
Open →
TB-2705 PXI Terminal Block Installation GuideInstallation Guide · download.ni.com
Open →
NI 61xx DAQ Cable and Accessory CompatibilityTechnical resource
Open →
NI 61xx Multifunction I/O Cable and Accessory CompatibilityTechnical resource
Open →
NI 67xx Analog Output Cable and Accessory CompatibilityTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

How many screw terminals does the TB-2705 have?

The TB-2705 has 62 screw terminals.

Does the TB-2705 require a cable to connect to the DAQ module?

No. It attaches directly to the front connector of a supported PXI DAQ module.

Is the TB-2705 compatible with every PXI DAQ module?

Do not assume universal compatibility. NI identifies it for legacy PXI E Series and S Series DAQ modules, and its accessory guide specifies compatibility by module model.

Does the TB-2705 require an external cable?

No. It attaches directly to the supported PXI module's front connector.
