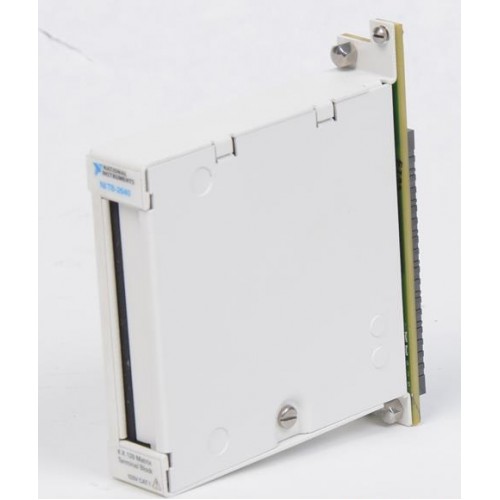

The NI TB-2640 configures the PXI-2532 as a 4×128 1-wire matrix with ribbon cable signal connections.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The TB-2640 provides matrix routing and internal row and column headers for the PXI-2532.
For individual-wire termination, NI documents the SCB-264X screw-terminal accessory connected through ribbon cables. Its manual includes a TB-2640-specific wiring table.
Verified product specifications.
| Matrix topology | 4×128, 1-wire |
|---|---|
| Maximum channel-to-channel switching voltage with PXI-2532 | 100 V |
| Maximum channel-to-ground switching voltage with PXI-2532 | 100, CAT I V |
| Maximum current per channel | 0.5 A |
| Row and column protection resistance, when used | 100 Ω |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Matrix switch module
Topology and signal interface
SCB-264X, connected through ribbon cables
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists 779056-01 as the standard TB-2640 and 779056-02 as the version with protection resistance. The catalog record does not identify its specific variant.
NI documents the SCB-264X accessory for screw-terminal wiring through ribbon cables connected to the TB-2640.
No. NI documents TB-2640B for the NI 2532B and explicitly states that TB-2640B is not compatible with the NI PXI/PXIe-2532. Keep the terminal-block and switch-module generations matched.
