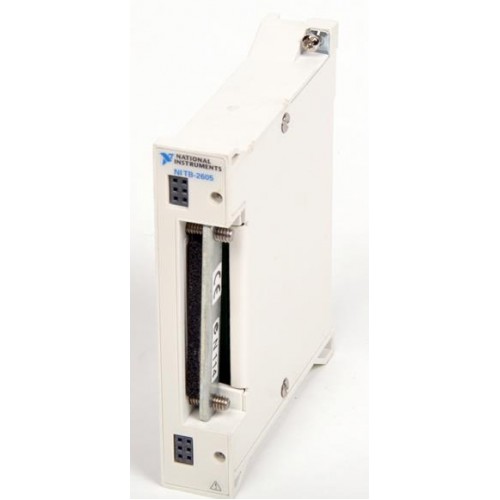

National Instruments TB-2605 Isothermal multiplexer terminal block

1 image: Click to enlarge

National Instruments · PXI

TB-2605

Name: TB-2605
Brand: National Instruments

The NI TB-2605 is an isothermal screw-terminal accessory for PXI-2501 and PXI-2503 multiplexer switch modules. It provides cold-junction temperature sensing and front-panel analog bus connections.

ManufacturerNational Instruments

ModelTB-2605

Part Number777878-01

Product TypeIsothermal multiplexer terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: TB-2605

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Manufacturer part number777878-01

Compatible switchesPXI-2501 and PXI-2503

Field wiringPCB-mounted screw terminals

Cold-junction sensorOnboard thermistor

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The TB-2605 mounts directly to the switch module's front I/O connector. Its isothermal construction reduces temperature differences across the terminals for thermocouple measurements.

NI lists this terminal block for the 2501/2503 multiplexer configurations with 6×1, 12×1, 24×1, and 48×1 topologies. Select wiring according to the configured switch topology.

Isothermal terminal construction for thermocouple connections.
Integrated thermistor for cold-junction temperature measurement.
Two front analog bus connectors support bus interconnection.
Cover and strain-relief bar secure the field wiring.

Verified specifications

Technical data

Verified product specifications.

Termination	Screw terminals on PCB
Switch-card I/O connection	68-position
Analog bus connectors	2 connectors
Cold-junction compensation accuracy, 15–35 °C	±0.5; includes sensor accuracy and sensor-to-terminal temperature difference °C
Cold-junction compensation accuracy, 0–15 °C and 35–55 °C	±0.9; includes sensor accuracy and sensor-to-terminal temperature difference °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PXI-2501 / PXI-2503

Supported multiplexer switch modules

TB-2605

Front-mounted signal termination

Multiplexer topology options

6×1, 12×1, 24×1, and 48×1 for NI 2501/2503

Install the switch card in the chassis before attaching the TB-2605; avoid extreme temperature differentials around the terminal block.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI TB-2605 Product PageProduct Page · ni.com

Open →

TB-2605 Isothermal Terminal Block Installation GuideInstallation Guide · download.ni.com

Open →

NI Multiplexer Switch Cable and Accessory CompatibilityTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which switch modules support the TB-2605?

NI lists the TB-2605 as a front-mounted terminal block for NI 2501 and 2503 multiplexer configurations.

Can the analog buses of adjacent switch cards be connected?

Yes. The installation guide describes linking adjacent cards through their terminal blocks with a low-voltage analog bus plug.
