NI (National Instruments) SWB-2833 4x71, 2 A, Electromechanical Relay Matrix Module for SwitchBlock

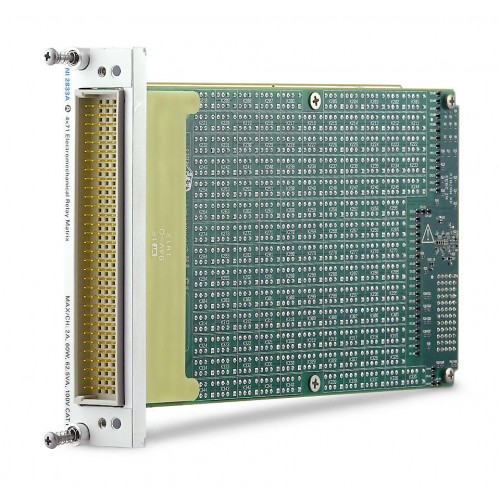

1 image: Click to enlarge

NI (National Instruments) · Computer-Based Device

SWB-2833

The NI SWB-2833 is an electromechanical relay matrix module for SwitchBlock systems. It provides 4 rows, 71 columns, 2-wire operation and a maximum DC switching current of 2 A.

ManufacturerNI (National Instruments)

ModelSWB-2833

Part Number781420-33 · 781421-33

Product Type4x71, 2 A, Electromechanical Relay Matrix Module for SwitchBlock

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SWB-2833

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Number of Columns71

Maximum Switching Current DC2 A

Maximum Switching Voltage DC100 V

Relay TypeElectromechanical

Number of Rows4

Mode (n-wire)2-wire

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SWB-2833 is a 4x71 electromechanical relay matrix module for the NI SwitchBlock system. Its listed NI part numbers are 781420-33 and 781421-33.

The module supports signal routing between test instruments and test points on a unit under test, including connections involving oscilloscopes, digital multimeters, arbitrary waveform generators and power supplies.

4-row, 71-column matrix with 2-wire operation.
Electromechanical relays with a SwitchBlock bus connection.
Maximum DC switching current of 2 A; maximum AC carry current of 2 A.
Maximum switching voltage of 100 V DC and 100 V AC.
Switch bandwidth of 10 MHz.
Supports connecting inputs to outputs individually or jointly.

Verified specifications

Technical data

Verified product specifications.

Number of Columns	71
Maximum Switching Current DC	2 A
Maximum Switching Voltage DC	100 V
Relay Type	Electromechanical
Number of Rows	4
Mode (n-wire)	2-wire
Supported Hardware Platform	Computer-Based Device
Bus Connection	Switchblock
Crosspoints	272
Maximum Carry Current AC	2 A
Maximum Switching Voltage AC	100 V
Switch Bandwidth	10 MHz
NI part numbers	781420-33, 781421-33
