National Instruments SHC68-68-RDIO Shielded digital I/O cable

1 image: Click to enlarge

National Instruments · NI R Series

SHC68-68-RDIO

Name: SHC68-68-RDIO
Brand: National Instruments

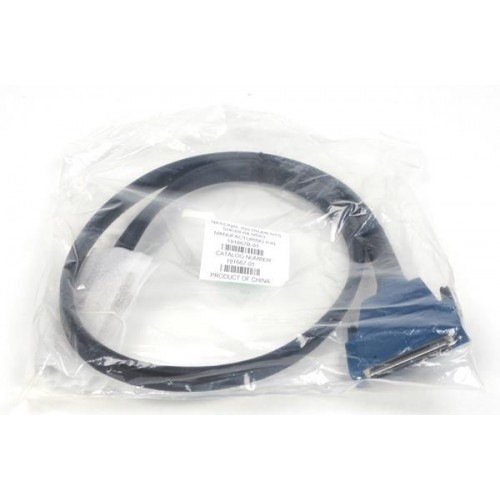

The NI SHC68-68-RDIO is a shielded digital cable for the DIO connectors of supported R Series devices. It connects a 68-pin VHDCI male interface to a 68-pin SCSI-II female interface.

ManufacturerNational Instruments

ModelSHC68-68-RDIO

Part Number191667-01

Product TypeShielded digital I/O cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SHC68-68-RDIO

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connection68-pin SCSI-II female to 68-pin VHDCI male

Signal routingDigital signals individually twisted with digital ground

Documented 1 m variantPart number 191667-01

Expansion chassis supportNI-9151

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The RDIO cable uses signal-specific routing rather than relying only on matching connectors. Each digital signal runs on an individually shielded pair with its own digital-ground wire, supporting signal integrity and noise immunity.

NI lists this cable for selected PCI, PCIe and PXI R Series devices with compatible digital I/O ports. Select the cable by the exact device model and port type; other R Series devices require different RDIO2 cabling.

Shielded construction designed for supported reconfigurable digital I/O connections.
Individually shielded digital signal/ground twisted pairs.
All DGND lines are internally interconnected within the cable.
Official dimensional drawings and wire-mapping resources support integration planning.

Verified specifications

Technical data

Verified product specifications.

Connector 1	68-pin SCSI-II female
Connector 2	68-pin VHDCI male
Cable shielding	Shielded
Length of part number 191667-01	1 m
Digital ground connections	All DGND lines internally connected

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

R Series digital I/O

Supported device interface

SHC68-68-RDIO

Shielded digital interconnect

Terminal block

SCB-68 or SCB-68A for the supported device combinations listed by NI.

Match the exact device and DIO port against NI's compatibility guide. Matching connector shapes do not establish signal-specific cable interchangeability.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SHC68-68-RDIO Cable Product PageProduct Page · ni.com

Open →

SHC68-68-RDIO Cable Dimensional DrawingsDimensional Drawings And CAD · ni.com

Open →

NI 78xx Models: R Series Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

Wire Mapping for SHC68-68-RDIO and SHC68-C68-RDIO2 CablesTechnical resource

Open →

Cable Compatibility for NI-7831RTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is the SHC68-68-RDIO interchangeable with an SHC68-68-EPM cable?

NI does not support that substitution for the NI-7831R application. Although the connectors may appear identical, cable bundling and shielding are application-specific.

Where can I find the cable wire map?

NI's wire-mapping article provides shielded-pair and color-code information for the SHC68-68-RDIO. It also states that all DGND lines are internally connected.

Does this cable support the NI-9151?

Yes. NI identifies the SHC68-68-RDIO as a cable for the NI-9151 expansion chassis. Verify the connected R Series device separately.
