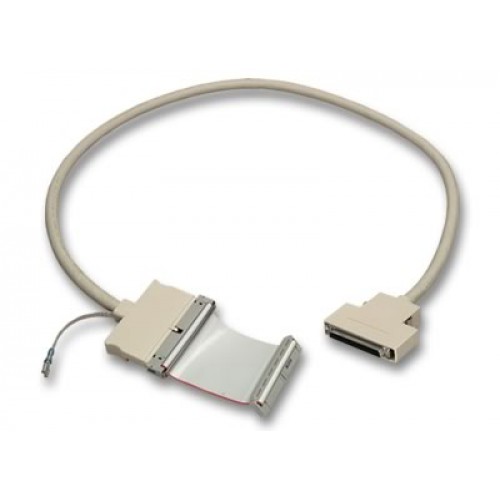

National Instruments SH6850 68-to-50-pin shielded multifunction I/O cable

1 image: Click to enlarge

National Instruments · NI DAQ

SH6850

The National Instruments SH6850 is a shielded, twisted-pair cable with a 68-pin female SCSI connector and a 50-pin female IDC connector. NI documents its use between selected E Series DAQ devices and 50-pin signal accessories.

ManufacturerNational Instruments

ModelSH6850

Part Number776784-01

Product Type68-to-50-pin shielded multifunction I/O cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH6850

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connection68-pin female SCSI to 50-pin female IDC

ConstructionShielded, twisted-pair cable

Catalog part number776784-01; NI documents this as the 1 m version

Documented DAQ devicesPCI-6023E and PCI-6024E

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SH6850 connects supported 68-pin DAQ device interfaces to 50-pin signal accessories. NI also identifies this cable family as SH68-50, with female SCSI and IDC connectors and shielded, twisted-pair construction.

The PCI-6023E and PCI-6024E user manual explicitly lists the SH6850 for connections to 50-pin signal accessories. The DAQCard-6024E uses a different cable-and-adapter arrangement, so that connection should not be treated as interchangeable.

68-pin female SCSI connector at one end.
50-pin female IDC connector at the accessory end.
Shielded cable construction with twisted pairs.
Documented connection option for PCI-6023E and PCI-6024E devices using 50-pin signal accessories.

Verified specifications

Technical data

Verified product specifications.

Product type	Shielded multifunction I/O cable
Device-end connector	68-pin female SCSI
Accessory-end connector	50-pin female IDC
Twisted pairs	Yes
Length for part number 776784-01	1 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

PCI E Series DAQ

Documented device platform, including PCI-6023E and PCI-6024E

SH6850

Cable connecting supported 68-pin devices to 50-pin signal accessories

Manufacturer naming

NI uses SH68-50 on its product page and SH6850 in legacy device documentation.

Check the exact DAQ model and accessory pinout before connection. The DAQCard-6024E requires a different cable-and-adapter arrangement.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SH68-50 Product PageProduct Page · ni.com

Open →

6023E/6024E/6025E User ManualUser Manual · download.ni.com

Open →

SH68-50 Product Certifications — 776784-05 VariantProduct Certifications · ni.com

Open →

Signal Connections and Optional Connector Information — 6023E/6024E/6025E User ManualTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What connectors does the SH6850 use?

It uses a 68-pin female SCSI connector and a 50-pin female IDC connector.

Can the SH6850 connect a PCI-6024E to a 50-pin signal accessory?

Yes. NI's user manual lists the SH6850 as a cable option for connecting PCI-6024E and PCI-6023E devices to 50-pin signal accessories. Verify the accessory's signal assignments before connecting.

Is the DAQCard-6024E connection the same as the PCI-6024E connection?

No. NI specifies a 68M-50F adapter used with an SHC68-68EP or RC68-68 cable for the DAQCard-6024E, rather than the direct SH6850 arrangement listed for the PCI devices.

What length is part number 776784-01?

NI identifies 776784-01 as the 1 m SH6850 version. Confirm the part number on the cable when identifying a particular unit.
