National Instruments SH68-68-D1 Shielded digital and counter/timer cable

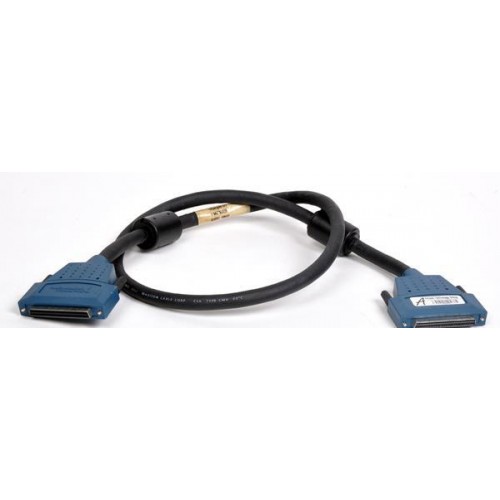

1 image: Click to enlarge

National Instruments · NI digital I/O and counter/timer

SH68-68-D1

Name: SH68-68-D1
Brand: National Instruments

The National Instruments SH68-68-D1 is a shielded, twisted-pair cable connecting supported NI digital instruments and counter/timer modules to 68-pin accessories. Both ends use 68-pin female SCSI-type connectors.

ManufacturerNational Instruments

ModelSH68-68-D1

Part Number183432-01

Product TypeShielded digital and counter/timer cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH68-68-D1

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connections68-pin female SCSI to 68-pin female SCSI

ConstructionShielded, twisted-pair cable

Single-ended impedance125 Ω

Documented part number183432-01: 1 m version

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SH68-68-D1 provides a shielded connection between supported NI hardware and external connection accessories. NI documents its use with 6533/6534 digital instruments and 660x/661x counter/timer modules.

The D1 design uses digital signal pairings intended for counter/timer applications. Select the cable by the exact device and accessory combination rather than connector appearance alone.

Female 68-pin SCSI-type connectors at both ends.
Single-shielded construction with 125 Ω single-ended impedance.
Digital twisted-pair arrangement designed for counter/timer connections.

Verified specifications

Technical data

Verified product specifications.

Device-end connector	68-pin female SCSI 0.050-inch D-type
Accessory-end connector	68-pin female SCSI 0.050-inch D-type
Shielding	Single shield
Single-ended impedance	125 Ω
Signal wire gauge	30 AWG
+5 V wire gauge	30 AWG
Length associated with 183432-01	1 m

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI digital I/O and counter/timer hardware

Supported device families

SH68-68-D1

Shielded connection to supported 68-pin accessories

Counter/timer models

NI lists 6601, 6602, 6608, 6612, and 6614 with the SH68-68-D1.

Check the exact device, accessory, and cable length against NI documentation; matching connector counts alone do not establish compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

NI SH68F-68F-D1 Product Page, Including SH68-68-D1 Part NumbersProduct Page · ni.com

Open →

68-Pin SCSI Cables: DAQ Multifunction I/O Cable GuideTechnical Guide · ni.com

Open →

66xx Counter/Timer Cable and Accessory CompatibilityCompatibility Guide · ni.com

Open →

NI D1–D5 Cable Connector, Shielding, and Impedance ComparisonTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What connectors does the SH68-68-D1 use?

It has a 68-pin female SCSI-type connector at each end.

What length is part number 183432-01?

NI identifies 183432-01 as the 1 m SH68-68-D1 cable. Confirm the physical cable label before treating this catalog record as a specific length.

Is the SH68-68-D1 interchangeable with every NI 68-pin cable?

No universal interchangeability is established. NI distinguishes these cables by shielding, signal pairings, and intended devices; use the compatibility guide for the exact hardware combination.
