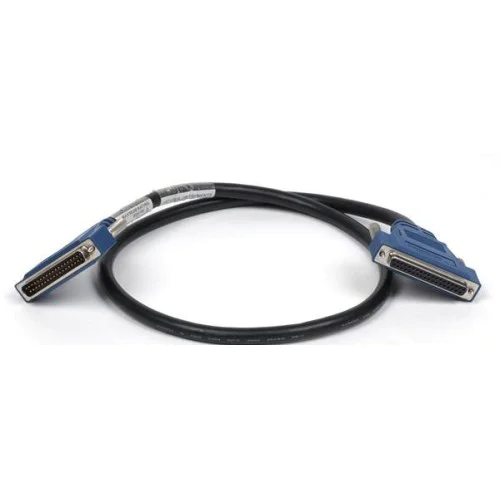

National Instruments SH37F-37M-1 Shielded I/O cable

1 image: Click to enlarge

National Instruments · NI DAQ and compatible CompactRIO modules

SH37F-37M-1

The NI SH37F-37M-1, part number 778621-01, is a 1 m shielded I/O cable with 37-pin female and male D-SUB connectors. It provides cable connectivity for supported NI measurement and I/O hardware.

ManufacturerNational Instruments

ModelSH37F-37M-1

Part Number778621-01

Product TypeShielded I/O cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH37F-37M-1

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Length1 m

Connections37-pin female to 37-pin male D-SUB

ConstructionShielded I/O cable

NI part number778621-01

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

SH37F-37M-1 is the 1 m version of NI's SH37F-37M cable family. Its shielded construction and female-to-male D-SUB terminations provide a connection between supported I/O devices and accessories.

NI documents this cable family for compatible CompactRIO modules and selected DAQ hardware. The NI 6520/6521 User Guide explicitly identifies the 1 m cable, part number 778621-01, among the NI 6520 screw-terminal connectivity options.

1 m cable length for supported I/O connections.
37-pin D-SUB female and male connectors.
Shielded construction; NI lists the 778621-01 cable as not twisted-pair.

Verified specifications

Technical data

Verified product specifications.

Manufacturer part number	778621-01
Cable length	1 m
Female connector	37-pin D-SUB
Male connector	37-pin D-SUB
Cable shielding	Shielded
Twisted pairing	No

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

37-pin D-SUB I/O connectivity

Connection interface

SH37F-37M-1

1 m shielded female-to-male cable

CompactRIO connection role

Connects compatible modules to D-SUB accessories or cables.

Confirm the exact device variant, connector pinout, and electrical limits before connection; matching D-SUB connectors alone do not establish compatibility.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SH37F-37M Product PageManufacturer Product Page · ni.com

Open →

SH37F-37M Product CertificationsCertification Index · ni.com

Open →

SH37F-37M Dimensional DrawingsDimensional Drawing Index · ni.com

Open →

NI 6520/6521 User GuideUser Guide · download.ni.com

Open →

SH37F-37M PDF and DXF Dimensional Drawing ResourcesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

What is the NI part number for SH37F-37M-1?

NI identifies SH37F-37M-1 as part number 778621-01, a 1 m shielded 37-pin female-to-male I/O cable.

How does SH37F-37M-1 differ from SH37F-37M-2?

SH37F-37M-1 is the 1 m cable, part number 778621-01. SH37F-37M-2 is the 2 m version, part number 778621-02.

Which NI hardware explicitly lists this cable?

NI lists part number 778621-01 as an accessory for NI-9204 part number 789114-01. The NI 6520/6521 User Guide also lists it for NI 6520 screw-terminal connectivity.
