National Instruments SH1006868 Shielded DAQ connection cable
1 image: Click to enlarge
National Instruments · NI E Series multifunction DAQ

SH1006868

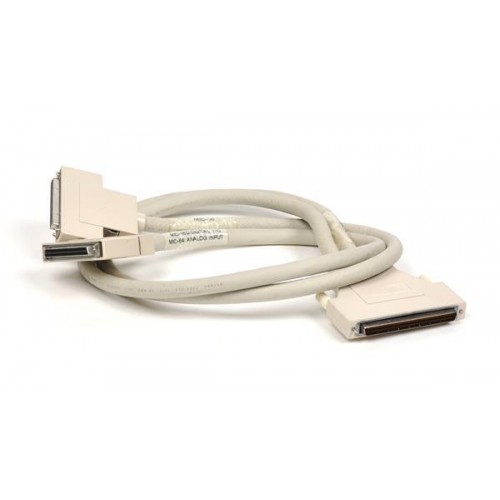

The National Instruments SH1006868, also documented as SH100-68-68, is a shielded cable connecting selected 100-pin E Series DAQ devices to one or two 68-pin accessories.

ManufacturerNational Instruments
ModelSH1006868
Product TypeShielded DAQ connection cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH1006868

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Device-side connection100-position D-type
Accessory-side connectionsTwo 68-position connectors
Cable constructionShielded
Supported device familiesNI 6025E, 6031E, 6033E and 6071E
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

This cable provides a shielded breakout from a supported 100-pin DAQ interface to two 68-pin accessory connectors. NI identifies it in the 100-pin multifunction I/O section of its E Series cable and accessory guide.

The catalog record does not identify a cable length or length-specific part number. Confirm the physical cable label and required length before selecting this model.

  • Shielded cable assembly with one 100-position connection and two 68-position connections.
  • Supports selected 100-pin NI E Series multifunction DAQ devices.
  • Official NI documentation provides MIO-16 and extended I/O connector signal mappings.
Verified specifications

Technical data

Verified product specifications.

Device-side connector100-position, 0.050-series D-type
Accessory-side connectorsTwo 68-position connectors
ShieldingShielded
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

100-pin E Series DAQ

Supported device interface

SH1006868

Cable to two 68-pin accessory connections

Compatibility

Listed for NI 6025E, 6031E, 6033E and 6071E devices in NI's 100-pin E Series compatibility guide.

Check the exact DAQ model, accessory requirements and connector signal mapping; connector pin count alone does not establish compatibility.
