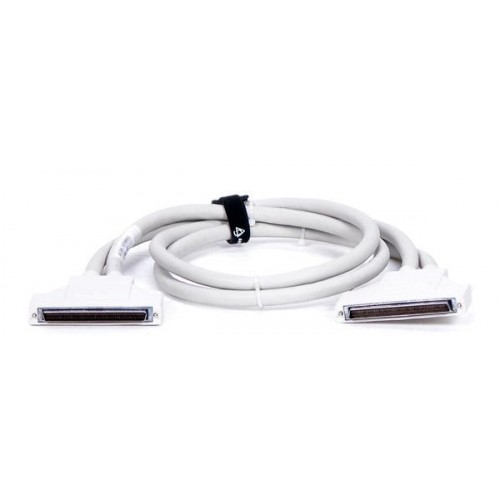

National Instruments SH100100 Shielded DAQ cable

1 image: Click to enlarge

National Instruments · NI DAQ

SH100100

The National Instruments SH100100 is a shielded 100-pin cable for connecting supported DAQ devices to 100-pin accessories. Its wiring differs from the SH100M-100M Flex, so the two should not be treated as interchangeable.

ManufacturerNational Instruments

ModelSH100100

Part Number182853-0x

Product TypeShielded DAQ cable

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH100100

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

Connection100-pin device to 100-pin accessory

ConstructionShielded twisted pairs

Wiring cautionPins 1 and 2 are shorted

Documented deviceNI PCI-6025E

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

NI's 6023E/6024E/6025E user manual specifies the SH100100 for connecting the 100-pin I/O connector of the PCI-6025E to 100-pin accessories.

NI describes this cable as primarily intended for analog signals. Pins 1 and 2 are joined for noise reduction, a distinction that matters when evaluating digital or counter connections.

Provides a shielded connection between supported 100-pin DAQ devices and accessories.
Uses twisted pairs with shielding connected to ground pins.
Identified by NI under the alternate names SH100-100 and SH100M-100M.

Verified specifications

Technical data

Verified product specifications.

Connection configuration	100-pin to 100-pin
Cable construction	Shielded twisted pairs; shielding connected to ground pins
Pin 1 to pin 2 connection	Shorted

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

NI PCI-6025E

Documented 100-pin DAQ device

SH100100

Cable to 100-pin accessories

Compatibility

NI PCI-6025E: documented cable for connecting its 100-pin I/O connector to 100-pin accessories.

Check the device pinout before connection: SH100100 shorts pins 1 and 2 and does not share the Flex cable's wiring.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SH100M-100M Flex and SH100100 Cable SpecificationsManufacturer Knowledge Article · knowledge.ni.com

Differences Between the SH-100-100 Cable and the SH-100-100F CableManufacturer Wiring Guidance · knowledge.ni.com

6023E/6024E/6025E User ManualUser Manual · download.ni.com

SH100100 versus Flex: pin-short and application differencesTechnical resource

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is SH100100 the same as SH100M-100M Flex?

No. NI distinguishes their wiring: SH100100 has pins 1 and 2 shorted, while the Flex version does not. Match the cable to the device's requirements.

Can SH100100 connect to the PCI-6025E?

Yes. NI lists SH100100 for connecting the PCI-6025E to 100-pin accessories in Table 4-1 of its user manual.

What cable length does this record identify?

No specific length is established. NI identifies the SH100100 part-number family as 182853-0x; confirm the complete suffix on the cable label.
