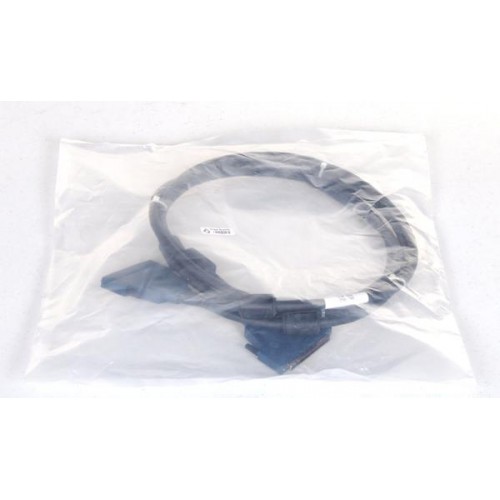

National Instruments SH100-100-F Shielded 100-pin I/O cable
1 image: Click to enlarge
National Instruments · NI digital I/O and timing connectivity

SH100-100-F

The National Instruments SH100-100-F is a shielded 100-pin cable connecting supported NI digital I/O devices to 100-pin accessories. NI also identifies this model as the SH100M-100M Flex cable.

ManufacturerNational Instruments
ModelSH100-100-F
Product TypeShielded 100-pin I/O cable
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SH100-100-F

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Connector configuration100-pin male to 100-pin male
Cable constructionShielded; no twisted pairing
WiringStraight-through
Alternate NI nameSH100M-100M Flex
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SH100-100-F provides cable connectivity for supported NI digital I/O and timing I/O hardware. NI's connector guide identifies its connector format as 100-position 0.050 D-Type.

Do not confuse this Flex cable with SH100100. NI documents different wire mappings: SH100-100-F is straight-through, while SH100100 uses shielded twisted pairs with shielding connected to ground pins. Select the cable using the connected device's documentation rather than connector appearance alone.

  • Male 100-pin connectors at both ends.
  • Shielded cable construction without twisted pairing.
  • Straight-through wire mapping distinguishes the Flex model from SH100100.
  • Pins 1 and 2 are not shorted together, unlike the non-Flex SH100M-100M cable.
Verified specifications

Technical data

Verified product specifications.

Connector format100-position 0.050 D-Type
Connector genderMale to male
Cable shieldingShielded
Twisted pairingNo
Wire mappingStraight-through
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

100-position 0.050 D-Type

Cable connector interface

SH100-100-F / SH100M-100M Flex

Device-to-accessory cable

Documented counter/timer connection

NI's 66xx guide recommends SH100M-100M Flex with the NI 6624 and SCB-100A.

SH100100 has different wiring. Check the device pinout and confirm the physical cable length and part number before selection.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SH100M-100M Flex Cable — NI Product PageProduct Page · ni.com
Open →
SH100M-100M Flex and SH100100 Cable SpecificationsTechnical Support Article · knowledge.ni.com
Open →
Differences Between the SH-100-100 Cable and the SH-100-100F CableCable Comparison · knowledge.ni.com
Open →
NI DAQ Connector Types and Replacement Connector GuideTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

Test Equipment Parts & Accessories

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Is SH100-100-F the same model as SH100M-100M Flex?

Yes. NI explicitly identifies SH100-100-F as the former name for SH100M-100M Flex.

What cable lengths does NI document for this model family?

NI lists 185095-01 as 1 m and 185095-02 as 2 m. The supplied catalog record does not reliably establish the length or exact part number of the physical unit.
