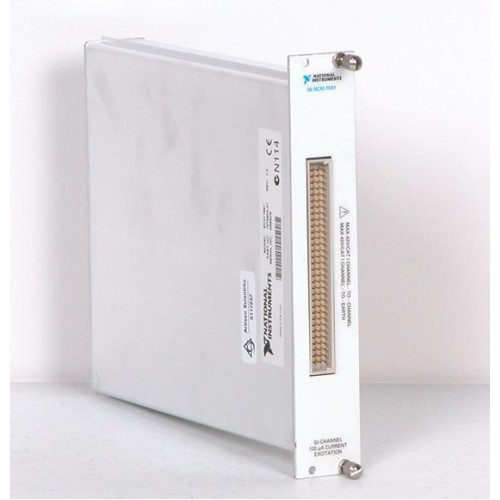

The NI SCXI-1581 supplies 32 channels of fixed 100 µA current excitation for resistance measurements, including RTD applications.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SCXI-1581 provides current excitation rather than sensor signal acquisition. NI identifies the SCXI-1102 as a common companion for high-channel-count RTD measurement systems.
Verified product specifications.
| Excitation channels | 32 single-ended outputs |
|---|---|
| Current output | 100 µA |
| Accuracy | ±0.05 % |
| Temperature drift | ±5 ppm/°C |
| Output voltage compliance | 10 V |
| Maximum resistive load | 100 kΩ |
| Recommended warm-up time | 10 min |
| Operating temperature | 0 to 50 °C |
| Specification reference conditions | Typical at 25 °C unless otherwise noted |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Module platform
Current excitation
SCXI-1102 for RTD signal measurement
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
No. The SCXI-1581 provides fixed 100 µA current excitation.
It supplies excitation. A separate measurement device acquires the sensor signal; NI documents the SCXI-1102 as a common pairing.
SCXI-1300, SCXI-1310, BNC-2095, and TBX-96. The SCXI-1300 onboard temperature sensor cannot be measured when connected to this module.
