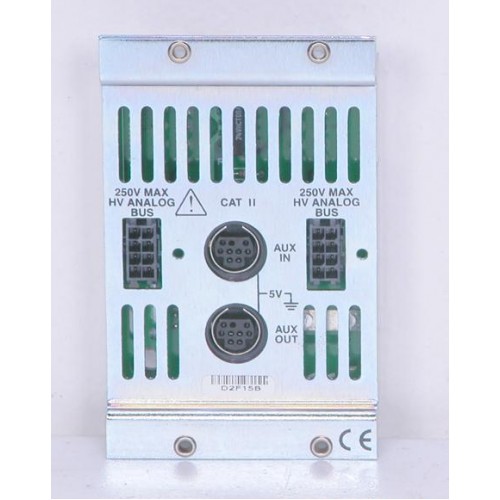

SCXI-1357

The National Instruments SCXI-1357 is a four-slot backplane adapter kit connecting an external switch controller to SCXI switches and providing a shared high-voltage analog bus.

ManufacturerNational Instruments

ModelSCXI-1357

Product TypeHigh-voltage backplane adapter kit

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1357

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformSCXI switching systems

Kit coverage4 slots

Signal busHigh-voltage analog bus (HVAB)
