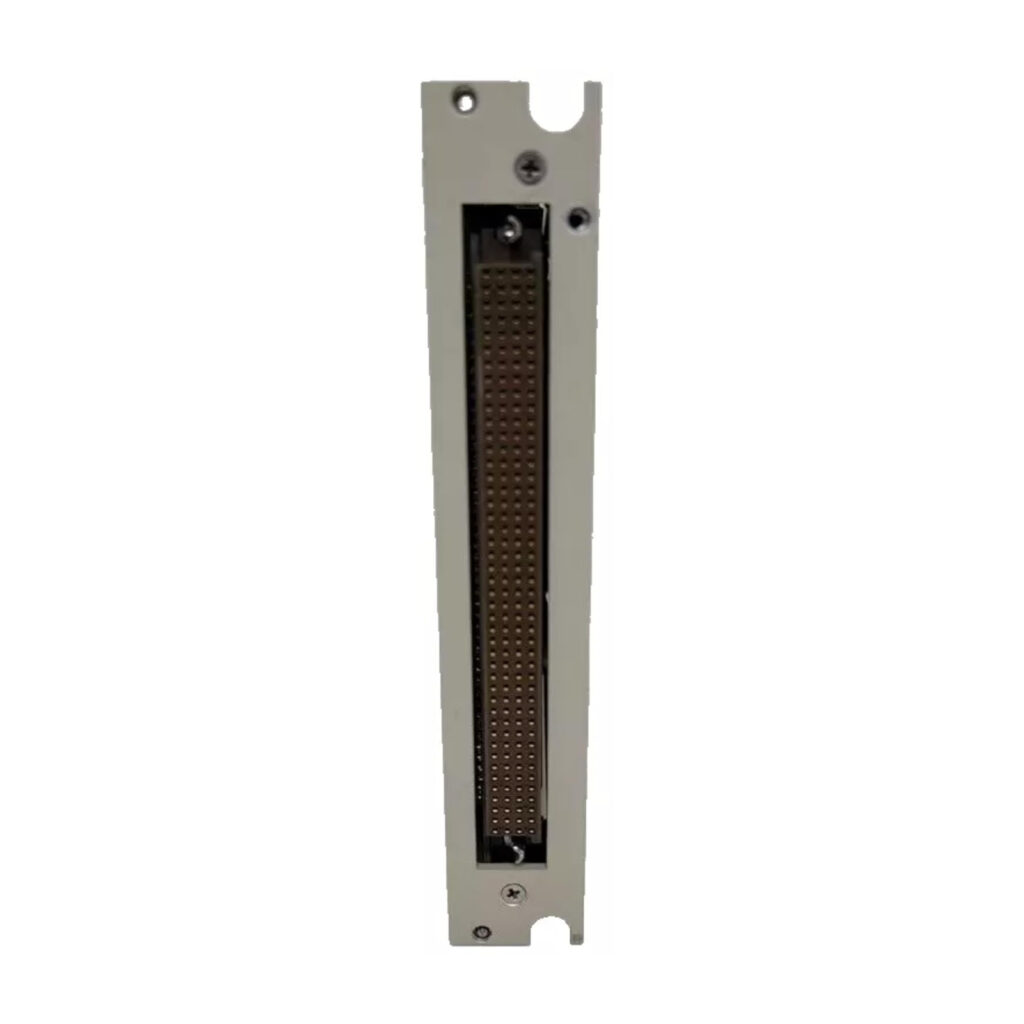

The National Instruments SCXI-1334 is a terminal block that configures the SCXI-1129 high-density matrix switching module as a 4 × 64, 2-wire matrix.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SCXI-1334 provides the terminal-block configuration for a 4 × 64, 2-wire matrix on the SCXI-1129. It is a connection accessory for the switching module, rather than a standalone switching instrument.
NI documents the SCXI-1334 in larger matrix assemblies using multiple SCXI-1129 modules. Matrix expansion plugs and cables are additional components required for the documented expansion arrangement.
Verified product specifications.
| Manufacturer part number | 777687-34 |
|---|---|
| Compatible switching module | SCXI-1129 |
| Matrix topology | 4 × 64 rows × columns |
| Matrix wiring | 2-wire |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
High-density matrix switching module
Terminal block for a 4 × 64, 2-wire matrix
NI documents larger matrices using multiple SCXI-1129 modules and SCXI-1334 terminal blocks with matrix expansion plugs and cables.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI lists the SCXI-1334 as a terminal block for the SCXI-1129 high-density matrix switching module.
It configures the SCXI-1129 as a 4-row × 64-column, 2-wire matrix.
Yes. NI documents larger matrix arrangements using multiple SCXI-1129 modules and SCXI-1334 terminal blocks, together with matrix expansion plugs and cables. The required component count depends on the target row and column counts.
