National Instruments · SCXI

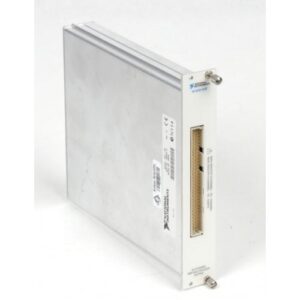

SCXI-1328

The National Instruments SCXI-1328 is an isothermal terminal block for precision thermocouple measurements. It incorporates a high-accuracy cold-junction temperature sensor.

ManufacturerNational Instruments

ModelSCXI-1328

Part Number777687-28 · 776573-28

Product TypeIsothermal thermocouple terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1328

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

ConstructionIsothermal terminal block

CJC sensorBuilt-in thermistor

Supported modulesSCXI-1120, SCXI-1120D, SCXI-1121 and SCXI-1125

Field wiring26–14 AWG

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1328 connects field transducers to supported SCXI modules through screw terminals. NI describes its construction as a shielded board with supports that mate to the module input connector.

Its onboard thermistor measures the cold-junction temperature used in thermocouple compensation. NI documents access to this sensor through the connected SCXI module; the addressing method depends on the module and acquisition configuration.

Isothermal construction for precision thermocouple applications.
High-accuracy onboard temperature sensor.
Screw terminals for field-signal connections.
Thermistor-based cold-junction compensation.

Verified specifications

Technical data

Verified product specifications.

Terminal-block construction	Isothermal
Cold-junction sensor type	Thermistor
Field wire gauge	26–14 AWG
Cold-junction sensor output	1.91 V at 0 °C to 0.58 V at 55 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform

SCXI-1328

Isothermal terminal block

Signal connection

Screw terminals connect transducers to the module inputs.

Check the selected module's wiring instructions and CJC configuration before connecting thermocouples.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI Terminal Blocks — Selection Guide and SpecificationsManufacturer Datasheet · search.ni.com

Open →

SCXI-1121 User Manual — Includes SCXI-1328 Connection InformationModule User Manual · download.ni.com

Open →

How to Use Cold Junction Compensation (CJC) with SCXI ModulesTechnical resource

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which modules support the SCXI-1328?

NI lists the SCXI-1120, SCXI-1120D, SCXI-1121 and SCXI-1125 for its precision thermocouple applications.

Does the SCXI-1328 include a cold-junction sensor?

Yes. It uses a built-in thermistor for cold-junction compensation.

How is the cold-junction temperature read?

The sensor is accessed through the connected SCXI module. NI's CJC guidance explains the channel addressing and configuration differences between modules and acquisition modes.
