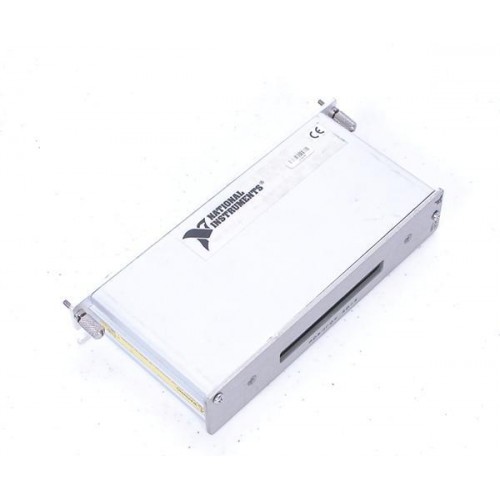

The National Instruments SCXI-1325 is a shielded, 26-screw terminal block for the SCXI-1124 module.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The terminal block mounts directly to the module front connector and provides wiring access to six output channels. Of its 26 terminals, 24 carry signals and two connect to chassis ground.
Verified product specifications.
| Screw terminals | 26 |
|---|---|
| Field wire size | 26–14 AWG |
| Channel-to-channel common-mode isolation | 250 Vrms |
| Channel-to-ground common-mode isolation | 250 Vrms |
| Operating temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Platform
Host module
Front terminal block
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
NI specifies the SCXI-1325 for the SCXI-1124.
No. The SCXI-1325 has 26 terminals. The TBX-1325 has 30 terminals and connects through an SH48-48-A cable.
