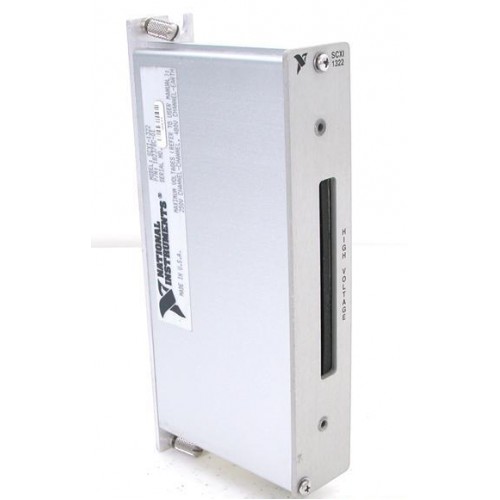

National Instruments SCXI-1322 High-voltage terminal block
1 image: Click to enlarge
National Instruments · SCXI

SCXI-1322

The National Instruments SCXI-1322 is a shielded screw-terminal block for the SCXI-1122 module.

ManufacturerNational Instruments
ModelSCXI-1322
Product TypeHigh-voltage terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1322

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Connections48 screw terminals
Module inputs16 terminal pairs
CJC sensorThermistor
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The terminal block provides field-wiring access to SCXI-1122 inputs and excitation connections. It attaches directly to the module front connector.

Its thermistor supports cold-junction compensation for thermocouple measurements. NI identifies SCXI-1122 as the compatible module for this CJC-equipped terminal block.

  • Shielded construction.
  • Strain-relief bar for signal wiring.
  • Built-in thermistor CJC sensor.
Verified specifications

Technical data

Verified product specifications.

Screw terminals48
Common-mode isolation, terminal to terminal250 Vrms
Common-mode isolation, terminal to earth480 Vrms
Operating temperature0 to 50 °C
CJC sensor typeThermistor
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Chassis platform

SCXI-1122

Associated module

SCXI-1322

Terminal block

Disconnect field power before wiring; follow NI grounding and insulation requirements.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1322 High-Voltage Terminal Block Installation Guide and SpecificationsInstallation Guide And Specifications · docs-be.ni.com
Open →
How to Use Cold Junction Compensation (CJC) with SCXI ModulesTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which module uses the SCXI-1322?

NI lists the SCXI-1122 as its compatible module.

Does it provide cold-junction compensation?

Yes. The SCXI-1322 uses a thermistor for CJC. NI documents reading the SCXI-1122 CJC separately from its analog-input scan.
