National Instruments · SCXI

SCXI-1317

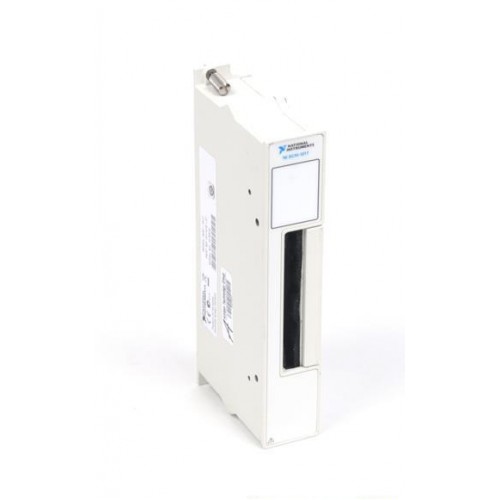

The SCXI-1317 connects quarter-bridge strain gauges to SCXI-1521 and SCXI-1521B modules.

ManufacturerNational Instruments

ModelSCXI-1317

Product TypeStrain-gauge terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1317

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

ConnectionsScrew terminals

Gauge wiring2-wire or 3-wire

MountingModule attachment using thumbscrews

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This terminal block provides the sensor connection point in an SCXI-1521/B measurement system; it is not a standalone acquisition module.

Quarter-bridge strain-gauge connections.
GND terminals for cable shields.
Strain-relief bar for signal wiring.

Verified specifications

Technical data

Verified product specifications.

Dimensions	15.0 × 7.9 × 3.1 cm
Operating temperature	0 to 50 °C
Storage temperature	-20 to 70 °C
Humidity	10 to 90, noncondensing % RH
Maximum working voltage, channel-to-earth and channel-to-channel	42; Installation Category I Vrms

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI-1521/B

Measurement module

SCXI-1317

Sensor terminal block

Compatibility

For SCXI-1521 and SCXI-1521B modules.

The terminal-block working-voltage rating is not the module input range; consult the SCXI-1521/B manual.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1317 Terminal Block Installation GuideInstallation Guide And Specifications · download.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which modules does it support?

SCXI-1521 and SCXI-1521B.

Where are the wiring diagrams?

Figures 1 and 2 of the installation guide show 2-wire and 3-wire connections.
