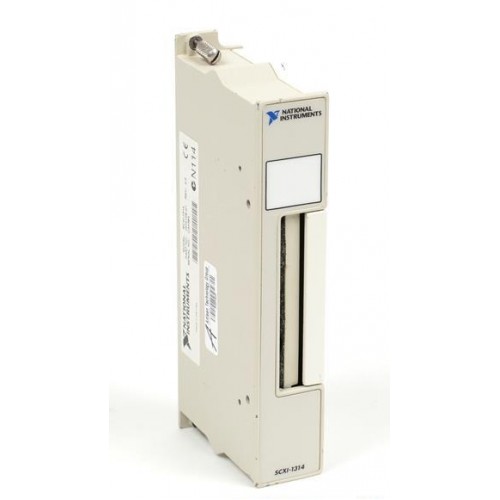

National Instruments SCXI-1314 Universal strain terminal block
1 image: Click to enlarge
National Instruments · SCXI

SCXI-1314

The NI SCXI-1314 is a screw terminal block that mounts to the front of the SCXI-1520 strain/bridge module. It provides sensor connections and sockets for quarter-bridge completion and shunt calibration resistors.

ManufacturerNational Instruments
ModelSCXI-1314
Product TypeUniversal strain terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1314

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Companion moduleSCXI-1520
Connection layout88 screw terminals in eight channel groups
InstallationFront-mounted terminal block
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

The SCXI-1314 provides the field-wiring interface for the SCXI-1520. Each channel has connections and sockets for two shunt calibration resistors and one quarter-bridge completion resistor.

  • Screw-terminal sensor wiring.
  • Socketed quarter-bridge completion resistors.
  • Two shunt calibration resistor sockets per channel.
Verified specifications

Technical data

Verified product specifications.

Channel groups8
Screw terminals per channel11
Quarter-bridge completion resistance350 factory default; replaceable with 120 Ω
Shunt calibration resistance100 factory default, two per channel kΩ
Specified resistor accuracy±0.1 %
Resistor temperature coefficient±10 ppm/°C
Operating temperature0 to 50 °C
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI-1520

Strain/bridge signal-conditioning module

SCXI-1314

Front-mounted screw terminal block

System role

Sensor-wiring accessory for the SCXI-1520, not a standalone acquisition module.

Check installed resistor values against the intended bridge configuration before wiring.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1314 Universal Strain Terminal Block Installation Guide and SpecificationsInstallation Guide And Specifications · download.ni.com
Open →
SCXI-1520 User Manual and SpecificationsCompanion Module Manual · download.ni.com
Open →
SCXI-1314 terminal assignments, resistor locations and installationTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which module uses the SCXI-1314?

NI documents the SCXI-1314 as a front-mounted screw terminal block for the SCXI-1520.

Is the SCXI-1314 the same as the SCXI-1314T?

No. The SCXI-1314 uses screw terminals; the SCXI-1314T uses RJ-50 connections for hardware TEDS smart sensors.

Can the completion resistors be changed?

Yes. They are socketed. NI specifies 350 Ω as the factory default and describes fitting 120 Ω resistors for 120 Ω strain gauges.
