SCXI-1313A

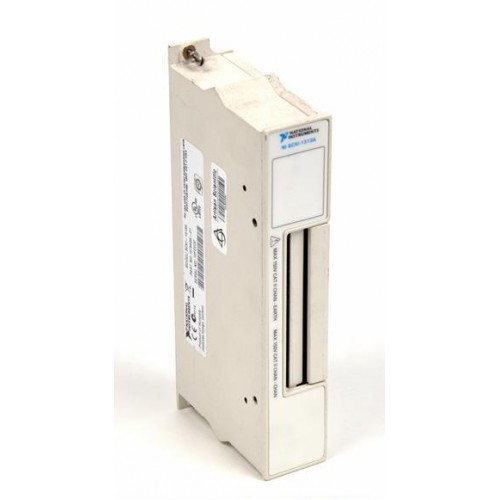

The NI SCXI-1313A extends SCXI-1125 voltage measurements to 150 Vrms or ±150 VDC with software-controlled attenuation.

ManufacturerNational Instruments

ModelSCXI-1313A

Part Number777687-13 · 777687-13A

Product TypeProgrammable voltage attenuator terminal block

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1313A

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

ModuleSCXI-1125

Inputs8

Attenuation100:1 or 1:1

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

This SCXI terminal block provides per-channel programmable range extension and an onboard temperature sensor for thermocouple cold-junction compensation.

Shielded enclosure.
Individually bypassable voltage dividers.
Onboard cold-junction temperature sensor.

Verified specifications

Technical data

Verified product specifications.

Input range	150 Vrms or ±150 VDC
Measurement category	CAT II
Screw terminals	18: 16 signal, 2 ground
Divider accuracy	±0.06% at 100:1; typical at 25 °C
Operating temperature	0 to 50 °C

Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI-1125

Host module

SCXI-1313A

Input terminal block

Compatibility

Designed for the SCXI-1125 module.

Observe the installation guide's voltage limits and grounding instructions.

Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1313A Installation Guide and SpecificationsInstallation Guide · download.ni.com

Open →

SCXI Terminal BlocksCatalog · search.ni.com

Open →

Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping

Free Shipping. Full policy terms apply.

Warranty

30-Day Warranty. Standard coverage applies.

Returns

30-Day Returns. Return policy applies.

Price / Availability

Contact SOHO ProLab for current quote and availability.

Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which module does it support?

NI specifies the SCXI-1125.

Why might software show SCXI-1313?

MAX and NI-DAQ use SCXI-1313 for both models.
