SCXI-1308

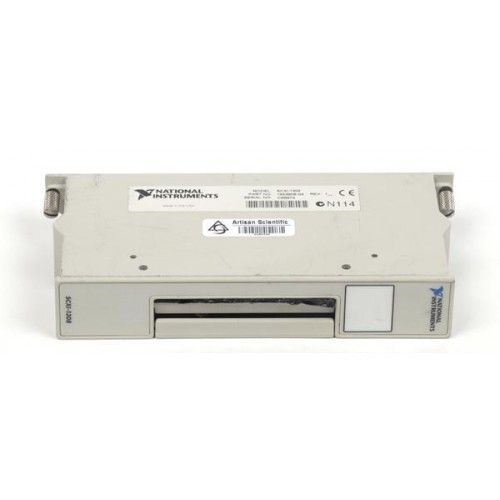

1 image: Click to enlarge
National Instruments · SCXI

SCXI-1308

The National Instruments SCXI-1308 provides 32 current-input channels for SCXI systems. Each input uses a 249 Ω precision resistor to convert 0–20 mA or 4–20 mA signals into voltage.

ManufacturerNational Instruments
ModelSCXI-1308
Part Number777687-08
Product Type32-channel current input terminal block
● Available to Order
Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1308

We will reply by email.
Free Shippingfull policy linked
30-Day Warrantystandard coverage
30-Day Returnspolicy applies
Technical Supportmodel & compatibility help
Channels32
Process current signals0–20 mA and 4–20 mA
Input resistor249 Ω per channel
NI part number777687-08
SOHO Assistant
Ask about this exact model, a replacement, accessory, driver, rental or repair question.
Ask about specifications, compatibility, availability, rental or repair.
Ask SOHO Assistant
Overview

Product overview

Key product information and technical features.

Designed for the SCXI-1100 and SCXI-1102/B/C analog input modules, the SCXI-1308 adds current-to-voltage conversion at the signal termination point.

The shielded terminal block attaches to the module front connector and provides 78 screw terminals, including 32 differential input pairs.

  • Built-in 249 Ω current-loop resistors.
  • Supports 0–20 mA and 4–20 mA inputs.
  • Shielded construction with screw-terminal wiring.
Verified specifications

Technical data

Verified product specifications.

Input channels32 differential
Screw terminals78
Current-loop resistance249 Ω
Resistor tolerance0.1 %
Resistor power rating0.25 W
Maximum input current20 mA
Condition & included items

What the actual unit includes

Confirm condition, included accessories and revision before ordering.

Condition

Confirmed per unit.

Included

Device / accessories confirmed in quote.

Revision

Exact revision confirmed when relevant.

Compatibility

Complete the measurement chain

Review system components and compatibility requirements.

National Instruments

Manufacturer

SCXI

Signal-conditioning platform

SCXI-1308

Current-input terminal block

Supported modules

SCXI-1100, SCXI-1102, SCXI-1102B, SCXI-1102C

Match the terminal block to the specified SCXI module; SCXI terminal blocks are not universally interchangeable.
Manuals & software

Technical resources

Manuals, software and technical resources for this model.

SCXI-1308 32-Channel Current Input Terminal Block Installation GuideInstallation Guide And Specifications · docs-be.ni.com
Open →
SCXI Terminal BlocksSelection Guide · search.ni.com
Open →
SCXI-1308 wiring diagrams, installation, and specificationsTechnical resource
Open →
Shipping, warranty & returns

Commercial terms

Review shipping, warranty and return terms before ordering.

Shipping
Free Shipping. Full policy terms apply.
Warranty
30-Day Warranty. Standard coverage applies.
Returns
30-Day Returns. Return policy applies.
Price / Availability
Contact SOHO ProLab for current quote and availability.
Lifecycle services

Source, rent or repair the exact model

Choose pricing, rental or repair for this exact model.

Get Price

Current price, availability and exact unit details.

Rent This Model

Request the exact model or a suitable alternative.

Repair This Model

Send the model and failure symptoms for review.

Related products

Alternatives & system components

Related model
SCXI-1300View product →
Related model
SCXI-1303View product →

Explore equipment

SCXI

Shipping, warranty and returns

FAQ

Product-specific questions

Product-specific answers based on available technical information.

Which modules support the SCXI-1308?

NI lists the SCXI-1100, SCXI-1102, SCXI-1102B, and SCXI-1102C.

How is the measured voltage converted to current?

Divide the measured voltage in volts by 249 to obtain current in amperes.

Can an input measure voltage instead of current?

NI requires removing that channel's current-loop resistor before measuring voltage signals.
