SCXI-1200

Name: SCXI-1200
Brand: National Instruments

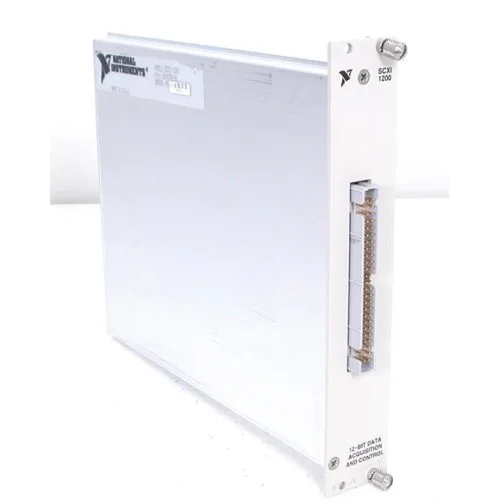

The National Instruments SCXI-1200 is a 12-bit data acquisition and control module with eight single-ended or four differential analog inputs. It can also acquire multiplexed signals from other SCXI analog input modules through the SCXI bus.

ManufacturerNational Instruments

ModelSCXI-1200

Product Type12-bit data acquisition and control module

● Available to Order

Condition: confirmed per unit

Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.

Fast RFQ

Quote: SCXI-1200

Free Shippingfull policy linked

30-Day Warrantystandard coverage

30-Day Returnspolicy applies

Technical Supportmodel & compatibility help

PlatformSCXI

Analog inputs8 single-ended or 4 differential

Input resolution12 bits

Maximum sampling rate100 kS/s

SCXI acquisition modeMultiplexed analog input module readout

Driver generationNI-DAQ 6.9.x or earlier

SOHO Assistant

Ask about this exact model, a replacement, accessory, driver, rental or repair question.

Ask about specifications, compatibility, availability, rental or repair.

Ask SOHO Assistant

Overview

Product overview

Key product information and technical features.

The SCXI-1200 combines data acquisition and control functions in the SCXI platform. Its analog input configuration provides eight single-ended channels or four differential channels with 12-bit resolution.

In multiplexed operation, the module reads analog signals routed over the SCXI bus from other analog input modules in the chassis. NI explicitly states that the SCXI-1200 reads these modules in multiplexed mode, not parallel mode.

Software selection is an important integration constraint. NI lists the SCXI-1200 among devices requiring NI-DAQ 6.9.x or earlier, rather than NI-DAQmx or Traditional NI-DAQ 7.x.

Selectable eight-channel single-ended or four-channel differential analog input configuration.
12-bit analog input resolution with a documented maximum sampling rate of 100 kS/s.
Programmable analog input gains of 1, 2, 5, 10, 20, 50, and 100.
Acquisition of multiplexed analog signals from other SCXI input modules through the SCXI bus.

Verified specifications

Technical data

Verified product specifications.

Analog input resolution	12 bits
Analog input configuration	8 single-ended or 4 differential
Maximum sampling rate	100 kS/s
Programmable input gains	1, 2, 5, 10, 20, 50, 100
External SCXI analog input module readout	Multiplexed mode; parallel mode is not supported
Driver requirement	NI-DAQ 6.9.x or earlier
