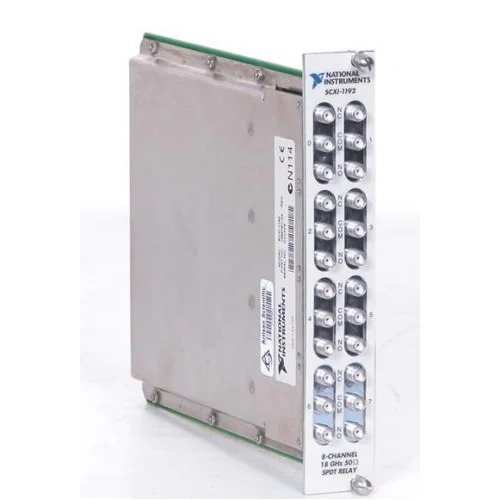

The National Instruments SCXI-1192 is an 18 GHz, 50 Ω SCXI relay module with eight single-pole double-throw (SPDT) relays.
Request current pricing and lead time for this model. Our team will confirm the exact equipment configuration and condition.
Key product information and technical features.
The SCXI-1192 provides eight SPDT relays within the National Instruments SCXI platform. Its 18 GHz bandwidth and 50 Ω characteristic impedance distinguish its high-bandwidth switching function.
Power handling requires attention to both signal frequency and the number of active relays. NI's manual correction specifies that the total input power across all relays must remain within the stated frequency-dependent limits; individual relay allowances decrease when multiple relays carry power.
Verified product specifications.
| Relay count | 8 relays |
|---|---|
| Relay topology | Single-pole double-throw (SPDT) |
| Bandwidth | 18 GHz |
| Characteristic impedance | 50 Ω |
| Scanning support | Not supported |
Confirm condition, included accessories and revision before ordering.
Confirmed per unit.
Device / accessories confirmed in quote.
Exact revision confirmed when relevant.
Review system components and compatibility requirements.
Manufacturer
Modular instrumentation platform
18 GHz, 8-SPDT, 50 Ω relay module
NI's archived SCXI support table lists NI-SWITCH and NI-DAQmx support for specific legacy operating-system and driver combinations.
Manuals, software and technical resources for this model.
Review shipping, warranty and return terms before ordering.
Choose pricing, rental or repair for this exact model.
Product-specific answers based on available technical information.
It provides eight single-pole double-throw (SPDT) relays with an 18 GHz bandwidth and 50 Ω characteristic impedance.
No. NI's scanning-capability reference lists the SCXI-1192 among switches that do not support scanning.
No. NI's manual correction states that the total input power across all relays must not exceed the frequency-dependent limits. Use its active-relay table to determine the carry-power allowance per relay. These limits apply to carrying power without switching.
